• 3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux
  • 3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

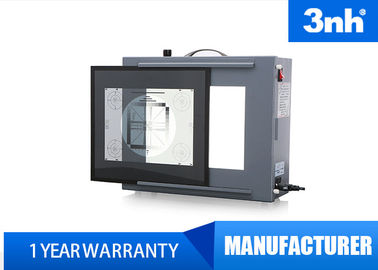

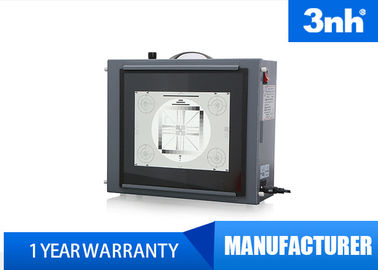

3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,ISO,RoHs,etc
Model Number: HC5100

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Wooden Exports Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal,etc.
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: HC5100 Light Source:: HC3100 ± 100k / HC5100 ± 100k
Uniformity: >92%, CRI >90 Luminous Source: 100 ~ 4400cd/m2 Adjustable
Illuminance: 0 ~ 27000Lux Adjustable Power Supply: Power Supply
Operating Temperature: 10~40℃ Major Diameter Dimension: 37W*32.5H*16.5Dcm
High Light:

pantone color viewing light booth

,

colour assessment cabinet

Product Description

3nh Color Viewing Light Box Color Assessment Cabinet With Illuminance 10000 Lux

3nh Color Viewer Transmission Light Box with illuminance 10000 lux



Brief Introduction:



3nh standard camera color viewer transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions. They are suitable for 4:3 transmission test chart.



HC5100/HC3100 adopts 3nh independent research and development LED light, and it has higher illumination uniformity and better CRI (color rendering index), while CC5100/CC3100 adopts DNP original light and it can get the same color temperature and illumination uniformity with DNP SDCV 3500 transmission light box, but we have 250 ~ 10000 Lux adjustable illuminance while SDCV 3500 only has 6000 ~ 10000 Lux. It can’t meet the requirement who needs to test image quality under 6000 lux.



Transmission light box offers a special light source to check the quality of camera. With two adjusting knobs, we can adjust the illuminance from 0 lux to 11000 lux. It





fits for many kinds of transmission test charts 4:3 use, such as transmission greyscale charts, transmissive high resolution test chart, transparency grid test chart, etc. Through image test software, the analysis result is more professional and easier.



Features:



  • Unique LED light or DNP original light, life up to more than 25000 hours
  • Uniformity Illumination over 92%, CRI (Color Rendering Index) > 90
  • Adjustable illuminance range from 0-11000lx, with 2 dimmer knobs
  • Fits for many kinds of 4:3 transmission test charts use, like 3nh, DNP, etc
  • Through Image test software, camera analysis result more professional and much easier.



Application



Transmission light box is widely used for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.



Specification




Model CC5100/CC3100 with DNP HC5100/HC3100 with LED light
original light


Light source: 5100K(5100K±200k) HC3100 ± 100k / HC5100 ± 100k
*4,3100K(3100K±200k) *4 Duv ± 0.002


Uniformity: >90% >92%, CRI >90

Luminous Source: 100 ~ 4400cd/m2 adjustable 100 ~ 4400cd/m2 adjustable

Illuminance: 250 ~ 10000Lux adjustable 0 ~ 27000Lux adjustable

Power supply: AC230V 50/60HZ AC100-240V 50/60HZ

Lighting method: High Frequency lighting method High Frequency lighting method
20KHz 20KHz


Operating 10~40℃ 10~40℃
temperature:


Operating Below 80%(avoid dew) Below 80%(avoid dew)
humidity:


Major diameter 38.5W*34H*15Dcm 37W*32.5H*16.5Dcm
dimension:


Luminance plane 25W*19Hcm 25W*19Hcm
dimension:
