60 Degree Digital Precise Micro Tri Gloss Meter Handy Simple Operation 0-300GU

60 Degree Digital Precise Micro Tri Gloss Meter Handy Simple Operation 0-300GU

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: HG60

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: HG60 Measuring Angle: 60
Measuring Area: 9*15 Measuring Range: 0-300GU
Repeatability: ±1.5 , ± 1.5% Weight: 350g
Measuring Time: 1s Wholesale: Yes
Storage: 1000 Software: GQC6
High Light:

paint gloss meter

,

60 degree gloss meter

Product Description

60 Degree Digital Precise Micro Tri Gloss Meter Handy Simple Operation 0-300GU

Universal Application 60 Degree Digital Precise Glossmeter Handy Simple Operation Gloss Meter



Brief Introduction:

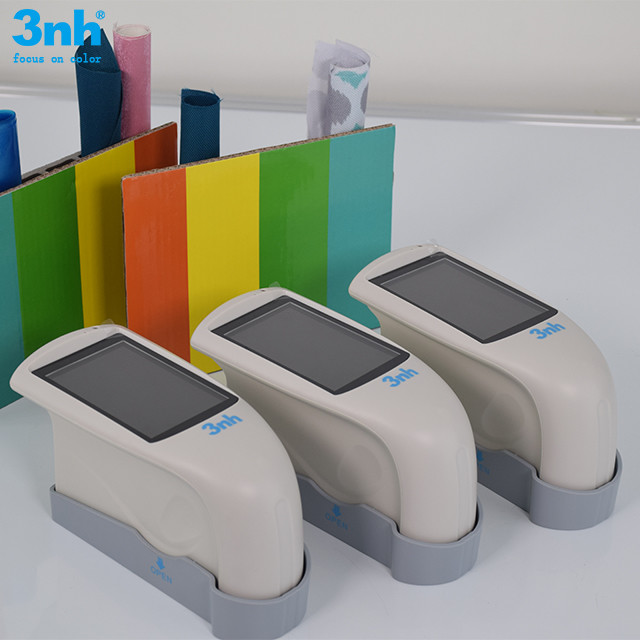

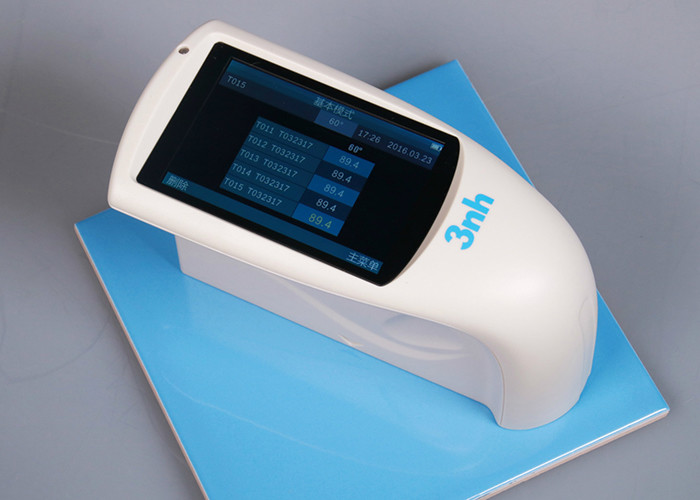

HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



Features:



  • 60° angle for semi gloss
  • Concise appearance, feel good
  • Display 5 sets of measurement data, good for comparison
  • Built-in lithium ion rechargeable battery
  • Basic model measurement can meet basic glossiness testing requirements
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.



Specifications:



HG60 Economic Gloss Meter
Model: HG60
Measuring Angle 60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 9x15
Measuring Range 0~300GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-300GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery , >10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.



60 Degree Digital Precise Micro Tri Gloss Meter Handy Simple Operation 0-300GU 0



GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.



Application:



HG60 Gloss Meter is a simple operation machine, can be wildly used in the field of automobile, paint, ink, coating, marble, printing, leather,plastic, electronic, furnnitue, ceramic electroplate, handware, etc.
