Large Touch Screen Multi Angle Gloss Meter Lightweight High End With Software

Large Touch Screen Multi Angle Gloss Meter Lightweight High End With Software

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: NHG268

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: NHG268 Measuring Angle: 20 60 85
Standard: ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 Division Value: 0.1GU
Measuring Time: 0.5S Weight: 350g
Dispaly: TFT 3.5 Inch,touch Screen Software: GQC6 QCsoftware
High Light:

3nh gloss meter

,

gloss level meter

Product Description

Large Touch Screen Multi Angle Gloss Meter Lightweight High End With Software

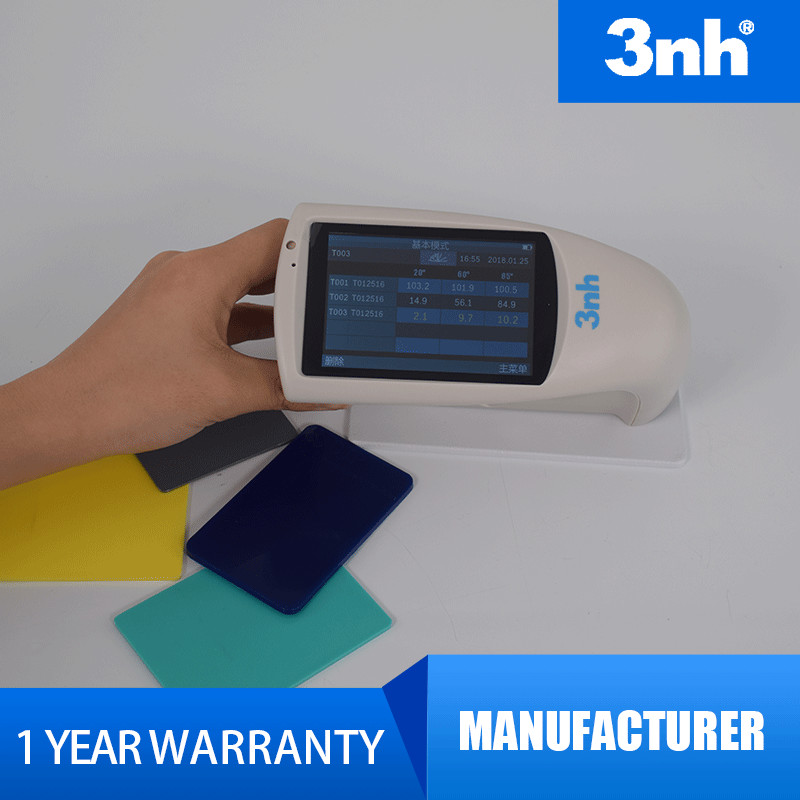

NHG268 High-end 0-2000GU Triangle Gloss Meter with 3.5 inch large touch screen



Brief Introduction:



Stable Performance,high precision, NHGseries touch screen gloss meter with large touch screen operation.NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Large Touch Screen Multi Angle Gloss Meter Lightweight High End With Software 0





Features:



  • 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
  • One button for all angles measurement at the same location
  • Display 5 sets of measurement data, good for comparison
  • Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
  • Continuous mode to check uniformity over large areas
  • Connect to PC, more extend functions
  • Input gloss value manually
  • Large touch screen operation, easy to use
  • Beauty appearance, good man-machine communication interface
  • Powerful functions to meet many different requirements
  • Large storage to save over 5000 data
  • Built-in lithi
  • um ion rechargeable battery.



Specifications:



NHG268 Multi-angle Precise Gloss Meter
Model: NHG268
Measuring Angle 20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 0.1s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery , >10000 times(within 8 hours)
Display TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Storage Basic mode: 1000; Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.
