• White Balance Card Resolution Test Chart Sineimage YE0115 With 70% Reflectance
  • White Balance Card Resolution Test Chart Sineimage YE0115 With 70% Reflectance
White Balance Card Resolution Test Chart Sineimage YE0115 With 70% Reflectance

White Balance Card Resolution Test Chart Sineimage YE0115 With 70% Reflectance

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh / Sineimage / X-Rite
Certification: CE
Model Number: YE0115

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Please send inquiry
Packaging Details: Safe Package
Delivery Time: 1-4 Days
Payment Terms: T/T
Supply Ability: 1000 Pcs per Week
Get Best Price Contact Now

Detail Information

Material: High Resolution Photographic Paper Types: Transparent/Reflectance
Ratio: 16:9/4:3 Brand: 3nh
Name: X Rite White Balance Card Application: For Shading Measurement
High Light:

camera resolution chart

,

camera lens test chart

Product Description

White Balance Card Resolution Test Chart Sineimage YE0115 With 70% Reflectance

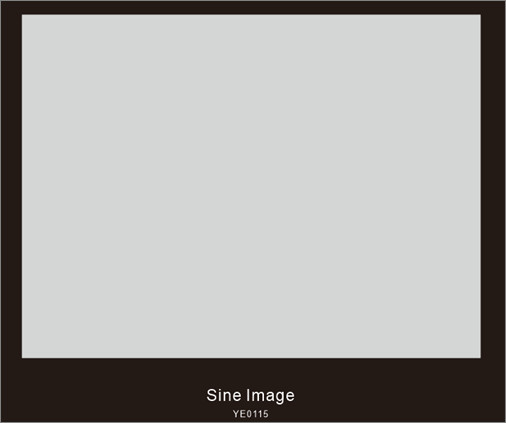

Sineimage YE0115 White Balance Card with 70% Reflectance

Model YE0115
Type Reflectance/Transmission
Size Custom Designs
Ratio 16:9/4:3
Material HD photographic paper/Filim

YE0115 test chart is specially designed for white balance test.

The density of the white area is 0.15 (based on BaO4S = 0).

The corresponding reflectivity of the white balance test card is 70%.

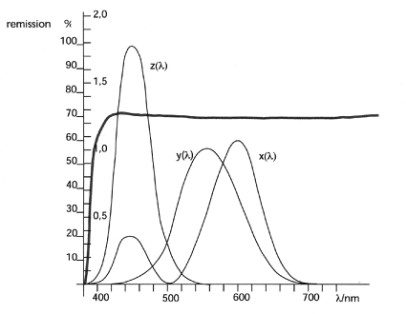

The white balance test card is made of highly homogeneous materials in the visible spectrum of 380-700 nm (see the grey curve in the illustration). In the 420 area of the slow downward trend in the figure below, a sharp downward waveform appears. The sensitivity of blue and red in this area is low, and the reflection of light has not changed significantly.
Sineimage YE0115 White Balance Card with 70% Reflectance
Sineimage YE0115 White Balance Card with 70% Reflectance
