20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System

China 20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System supplier
20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System supplier 20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System supplier 20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System supplier 20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System supplier 20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System supplier

Large Image :  20mm Measure Aperture 3nh Spectrophotometer 3nh YL4520 45°/0° Color Measurement System

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: YL4520

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: discuss
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Model: YL4520 Screen: 7inch TFT Capacitive Touch-screen
Wavelength: 400~700nm Measure Material: Solid,liquid,powder,paste,etc
Measure Aperture: 20mm Reflectance Range: 0~200%
Non-contact Distance: 7.5mm Optical Geometry: 45/0 Method(45 Ring-shaped Illumination, Vertical Viewing)
Observer Angle: 2 Degree & 8 Degree Weight: 9.6kg

YL4520 Non-contact Benchtop Spectrophotometer



YL4520 spectrophotometer is a color measuring instrument with 45/0 optical geometry(45 ring-shaped illumination, vertical viewing), to achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc, which is developed by 3nh independently with independent intellectual property.

YL4560 non-contact benchtop spectrophotometer can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. Its unique innovative design can not only provide non-contact measurement scheme directly from the production line, but also ensure stable and high-precision measurement results.

YL4560 non-contact spectrophotometer will not touch the sample in the measurement process, to prevent damage to the sample, but also to avoid cross contamination.



PRODUCT FEATURES

1. non-contact, 45 / 0 geometric optical structure to measure the reflectance and chromaticity of objects

2. The movable measuring head moves up and down according to the actual height of the measured object

3. Large touch screen measurement interface, real-time display of measurement data, to realize more measurement functions

4. Multiple measurement modes (sample, quality control, continuous statistical mode) can be selected to meet the personalized needs

5. According to the actual height of the testing sample, the measuring probe can be moved up and down automatically and the height of the testing sample can be stored.

6. TFT true color 7 inch capacitive touch screen; concave grating.

7. 256 Image Element Double Array CMOS Image Sensor.

8. Wavelength range: 400~700nm, 10nm output.

9. Lighting source: full spectrum LED light.

10. Multiple measurement modes: Sample mode, QC mode, Continuous Statistical mode to meet more customer needs.

11. Large capacity storage: Sample mode + QC mode: 30,000 Continuous statistics mode: 10,000

12. Built-in camera locating.

13. PC software has powerful extended function.



APPLICATION INDUSTRY

45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.

Specification

Model YL4520
Illumination system 45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features 45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.
Light Source Full spectrum LED light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm/10nm output
Reflectance Range 0~200%
Measuring Aperture Φ20mm
Non-contact Distance 7.5mm
Sample Height 0~150mm
Distance Adjustment Method Manual adjustment(test height can be stored)
Measuring mode Sample mode/QC Mode/Continuous statistics mode
Locating Method Camera Locating
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO),



Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity



Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s
Data Storage Sample mode + QC mode: 30,000; Continuous statistics mode: 10,000



Repeatability



Spectral reflectance: Standard deviation within 0.08%

Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error Within ΔE*ab 0.25(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2 ~ 99 times)
Dimension 330*250*370mm
Weight About 10 kg
Power Supply DC 24V, 3A Power Adapter
Illuminant Life Span 5 years, more than 3 million times measurements
Display Screen 7" TFT Capacitive Screen-touch Display
Data Port USB/RS-232
Language Simplified Chinese,Traditional Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
Notes The specifications are subject to change without notice.

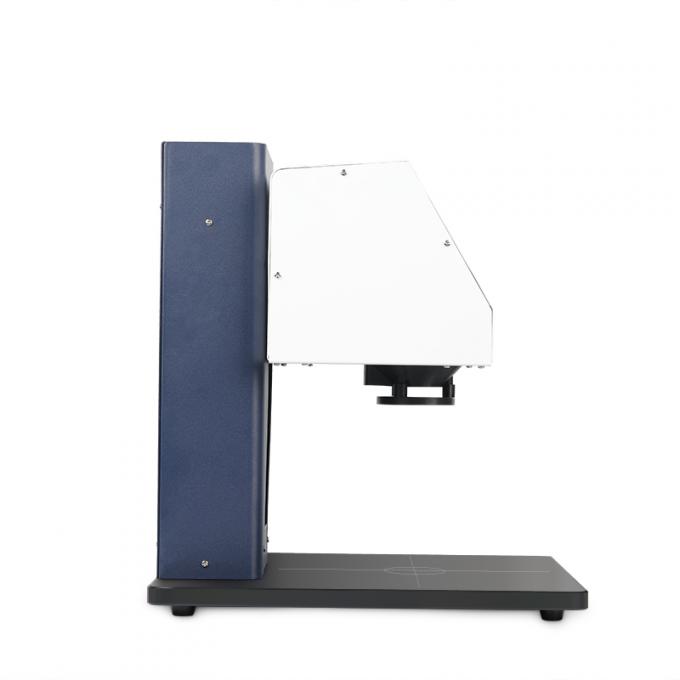

3nh YL4520 45°/0° Non-contact Benchtop Spectrophotometer color measurement system

3nh YL4520 45°/0° Non-contact Benchtop Spectrophotometer color measurement system

3nh YL4520 45°/0° Non-contact Benchtop Spectrophotometer color measurement system
