|Measuring Angle:||20° & 60° & 85°||Measuring Area(mm):||20°:10x10 60°:9x15 85°:5x36|
|Measuring Range(GU):||20°:0~2000 60°:0~1000 85°:0~160||Division Value:||0.1GU|
|Tolerance:||±1.2, ±1.2%||Data Port:||USB|
3nh gloss meter,
tri gloss meter

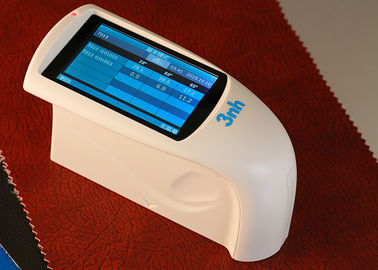

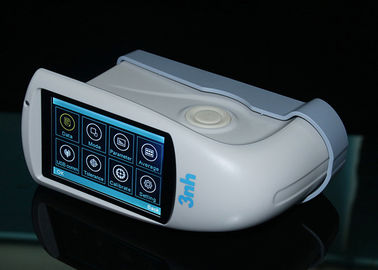

3nh High-precision Tri-angle Gloss Meter NHG268 Portable Glossmeter
|Parameters||Tri-angle Gloss Meter NHG268|
20° & 60° & 85°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
|Measuring Area||20°: 10x10mm 60°: 9x15mm 85°: 5x36mm|
|Measuring Range||20°:0~2000GU 60°:0~1000GU 85°:0~160GU|
|Measurement Range Repeatability
|0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
|Measurement Standard||Conform to the Working Requirements for JJG696 First Class Glossmeter|
|Chromaticity Response||Corresponding with CIE 1931(2°) under CIE C Light Source|
|Display Size||TFT 3.5"|
|Screen-touch||Yes, Capacitive Touch Screen|
|Battery||3200mAh Li-ion Battery , more than 10000 times (within 8 hours)|
Basic Mode: 1000
Statistical Mode: 5000
Continuous Mode: 5000
|PC Software||GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions|
|Operation Temperature||0~40℃ (32~104℉)|
|Storage Temperature||-20~50℃ (-4~122℉)|
|Humidity||<85% Relative Humidity, No Condensation|
|Standard Accessories||Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate|
|Optional Accessories||Mini Printer|
1. NHG268 three angles smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
2. As the whole world's first glossmeter which is fully screen-touch operational and with a ultra-large display, NHG268 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.
3. NHG268 has three measuring modes.
Basic Mode, the simplest sample measurement mode;
Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting.
4. Now NHG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
Frequently Asked Questions
1. Which models are the equivalent models to NHG268 Gloss Meter?
Answer: BYK4446 is the equivalent model to 3nh NHG268.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
