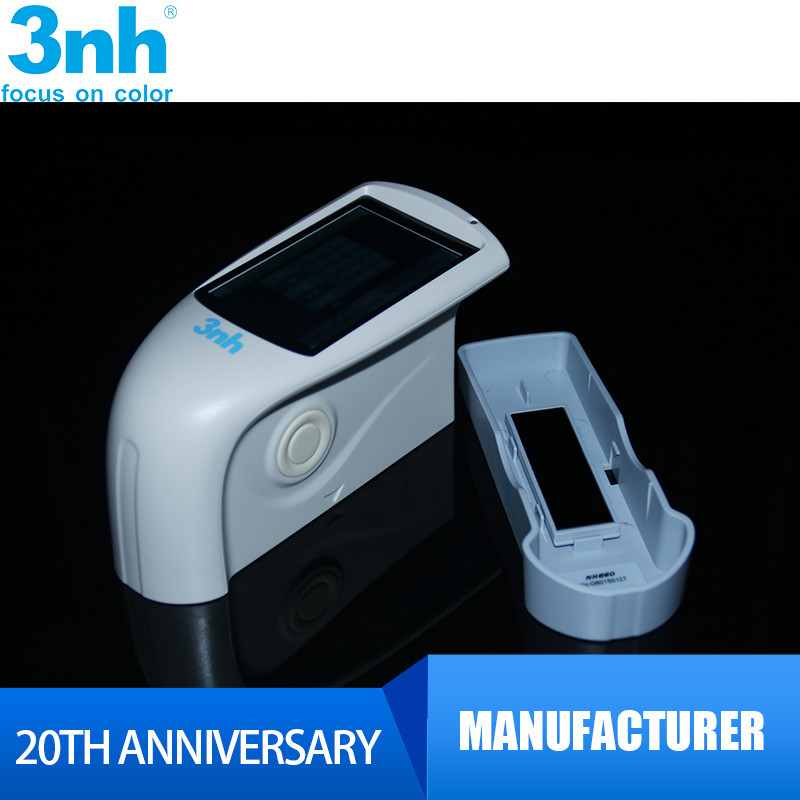

Auto Calibration 3nh Gloss Meter 60 Angle 300 Gu With PC Software GQC6

China Auto Calibration 3nh Gloss Meter 60 Angle 300 Gu With PC Software GQC6 supplier
Auto Calibration 3nh Gloss Meter 60 Angle 300 Gu With PC Software GQC6 supplier Auto Calibration 3nh Gloss Meter 60 Angle 300 Gu With PC Software GQC6 supplier

Large Image :  Auto Calibration 3nh Gloss Meter 60 Angle 300 Gu With PC Software GQC6

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHs
Model Number: HG60

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 30*20*10cm, 1kg, with a carrying bag
Delivery Time: 1-5 Days
Payment Terms: T/T
Supply Ability: 1000 Units per Month
Contact Now
Detailed Product Description
Standard: ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457 Measuring Angle: 60°
Measuring Range(GU): 300Gu Battery: 3200mAh Li-ion Battery
Software: GQC6 Interface: USB/RS-232
High Light:

paint gloss meter

,

portable gloss meter



Auto-Calibration Gloss Meter 3nh Single angle Glossmeter HG60 300 gu with PC Software



Brief Information:



HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.



Specifications:



HG60 Economic Gloss Meter

Model: HG60 GLOSS METER
Measuring Angle 60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area (mm) 9x15
Measuring Range 0~300GU
Division Value 0.1GU

Measurement Range

Repeatability

Reproducibility

0-10GU 10-100GU 100-300GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU

Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery , >10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation

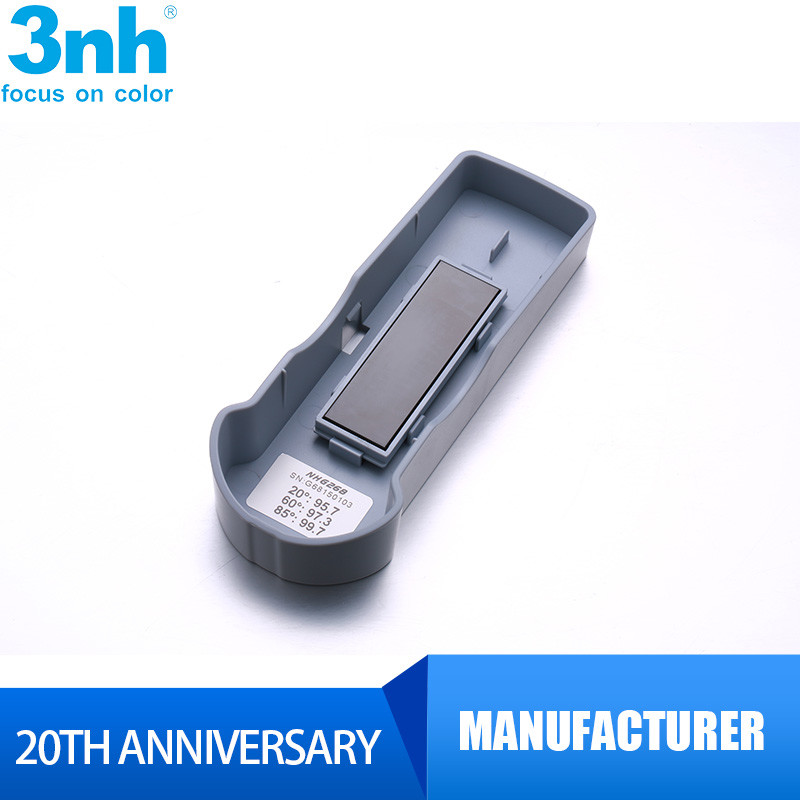

Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.





Applications:



All our gloss meter glossness products have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.

HG60 gloss meter
