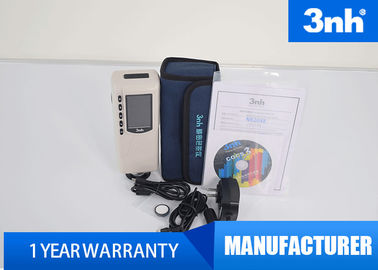

CIE Lab Digital Color Meter Manual Calibration High Precision For Fruit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | NR20XE | Illuminating/Viewing Geometry | 45/0 |
---|---|---|---|
Calibration | Manual | Measuring Aperture | 20mm |
Color Space | CIE-Lab, CIE XYZ, CIE-LabCH | Delta E Accuracy | <0.08 |
High Light | colour difference meter,paint color analyzer |
Product Advantages:
1. 20mm measuring aperture can test objects with surface stripe accurately.
2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.
3. Double Locating: Illuminating locating and cross locating.
4. Adopting new optical path and dynamic integration time can test more stable and accurate.
5. 45°/0° optical geometry structure, considering the effects of surface features.
6. Annular illumination design, suitable for polarizing material.
7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
8. Configuring CQCS3 software -- connect PC computer to realize more functions
Applications:
Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.
Specification:
3nh | NR20XE Precision Colorimeter |
Illuminating/Viewing Geometry | 45°/0° |
Measuring Aperture | Φ20mm |
Special Function | Especially suitable for testing surface stripe and wet products |
Locating | Illumination Locating/Cross Locating |
Detector | Silicon photoelectric diode |
Locating | Illuminating Locating/Cross Locating |
Color Space | CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ |
Color Difference Formula | △E*ab; △L*a*b*; △E*C*h* |
Light Source | D65 |
Light Source Device | LED blue light excitation |
Errors Between Each Equipment |
≤0.50ΔE*ab |
Storage | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
Weight | 500g |
Dimension | 205×67×80 mm |
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Charging Time | First charging time is 8 hours--100% electricity |
PC Software | CQCS3 Software |
Printer (optional) | Miniature thermal printer |
20mm NR20XE Fruit Food Color Difference Analyzer Meter with PC software

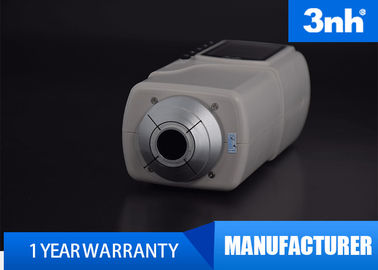

NR20XE with φ20mm extended aperture and stable end face can test surface stripe and wet products.
Product Introduction:
3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore,NR20XE is widely used in color field.
