Single Angel Intelligent Digital Gloss Meter 60° Angle For Ceramic Painting

Single Angel Intelligent Digital Gloss Meter 60° Angle For Ceramic Painting
Single Angel Intelligent Digital Gloss Meter 60° Angle For Ceramic Painting Single Angel Intelligent Digital Gloss Meter 60° Angle For Ceramic Painting

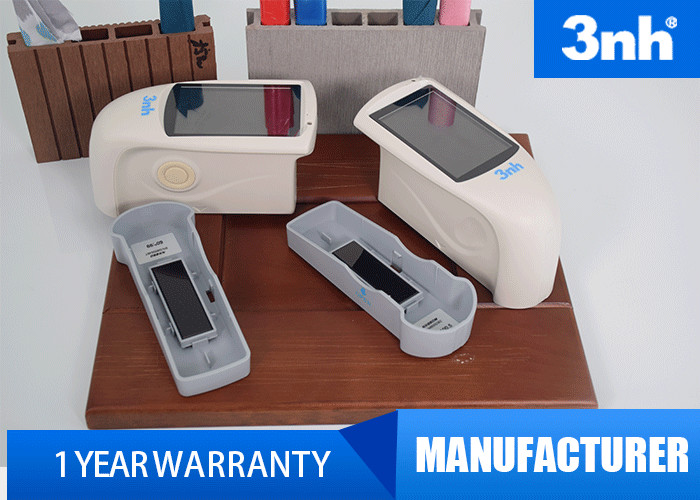

Large Image :  Single Angel Intelligent Digital Gloss Meter 60° Angle For Ceramic Painting

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: NHG60

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Model: NHG60 Standard: Comply With Standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area: 9*15 Measuring Range: 0-1000GU
Errors: ±1.2 , ± 1.2% Battery: 3200mAh Li-ion Battery, >10000 Times(within 8 Hours)
Standard Accessories: Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate Software: GQC6 QCsoftware
High Light:

60 degree gloss meter

,

portable gloss meter

NHG60 single angel intelligent gloss meter for ceramic painting plastic glossiness



Brief Introduction:



NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



Features:



  • 60° angle for semi gloss
  • Display 5 sets of measurement data, good for comparison
  • Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
  • Continuous mode to check uniformity over large areas
  • Connect to PC, more extend functions
  • Input gloss value manually
  • Large touch screen operation, easy to use
  • Beauty appearance, good man-machine communication interface
  • Powerful functions to meet many different requirements
  • Large storage to save over 5000 data
  • Built-in lithium ion rechargeable battery.

Single Angel Intelligent Digital Gloss Meter 60° Angle For Ceramic Painting 0

Specifications:



NHG60 60° Precise Gloss Meter
Model NHG60
Measure Angle 60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm) 9X15
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.





Application:



NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
