ASTM Standard Digital Gloss Meter 1000gu YG60 3nh With 60 Degree Measuring Angle

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHs
Model Number YG60
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 30*20*10cm, 1kg, with a carrying bag
Delivery Time 1-5 Days
Payment Terms T/T
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 60 Degree Measuring Area(mm) 60°:9X15
Measuring Range(GU) 1000gu Division Value 0.1GU
Tolerance ±0.2GU , ±0.2%GU Data Port USB
High Light

portable gloss meter

,

paint gloss meter

Leave a Message
Product Description

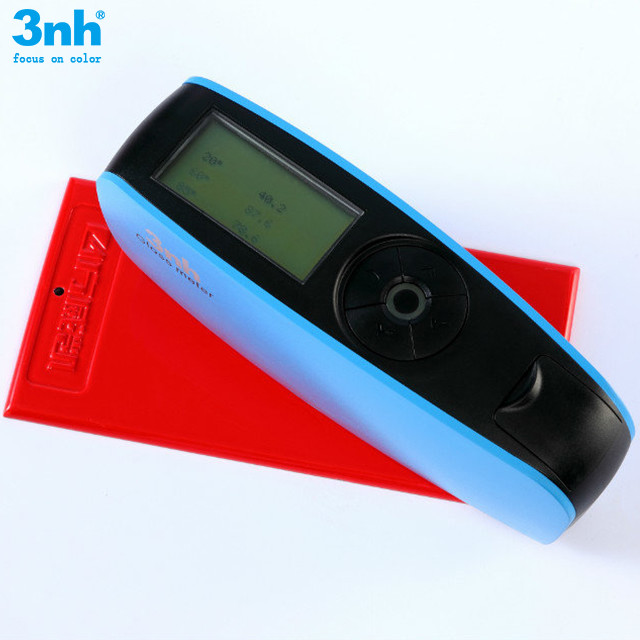

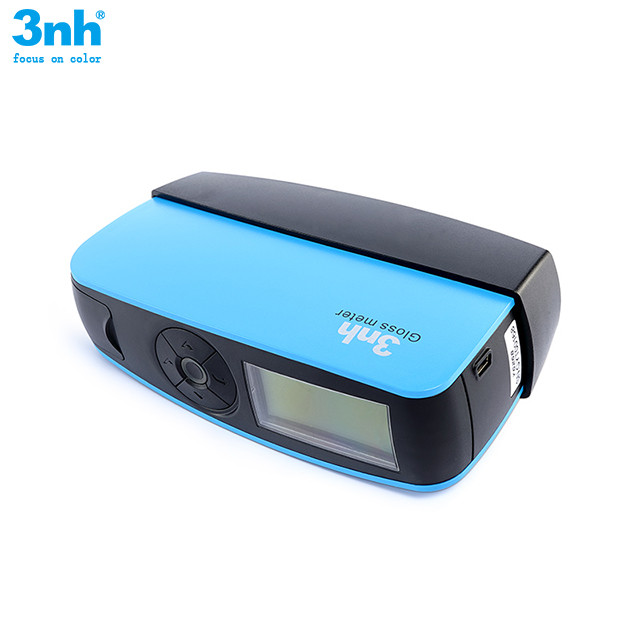

Digital gloss meter tester ASTM standard glossmeter 1000gu YG60 3nh



YG series gloss meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.



YG60 60° Precise Gloss Meter test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Product Features:



1. Elegant Design combined with aesthetics and ergonomics;

2. With auto-calibration function;

3. Meet the first grade requirements of JJG696;

4. Large storage to save over 35000 data;

5. Auto Power-off within optional 30-120 seconds;

6. Comply to ISO2813,ASTM523, GB/T9754;

7. With PC software for quality report, more extend functions;

8. With multi working modes and multi-functions for most customers’ requirements.



Application:

Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.



Model YG60 Accuracy gloss meter
Measuring Angle 60°
Measuring Area 60°:9X15
Measuring Range 60°: 0~1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU:±0.2GU ;
100~1000GU:±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range (-20-50℃)(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference

ASTM standard glossmeter 1000gu YG60 3nh gloss meter with 60 degree
