Color Reflection Colour Measurement Spectrophotometer with CIE lab delta E value YS3010

China Color Reflection Colour Measurement Spectrophotometer with CIE lab delta E value YS3010 supplier
Color Reflection Colour Measurement Spectrophotometer with CIE lab delta E value YS3010 supplier Color Reflection Colour Measurement Spectrophotometer with CIE lab delta E value YS3010 supplier

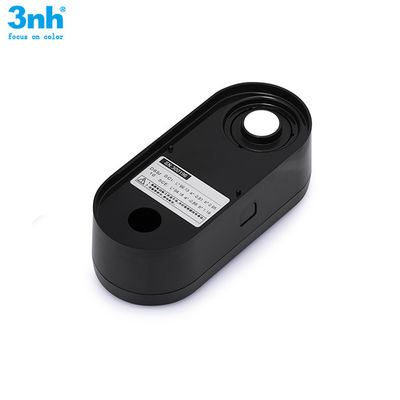

Large Image :  Color Reflection Colour Measurement Spectrophotometer with CIE lab delta E value YS3010

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHS, ISO9001
Model Number: YS3010

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Please send inquiry
Packaging Details: 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time: 2-5 Days
Payment Terms: T/T
Supply Ability: 500 Units per Month
Contact Now
Detailed Product Description
Optical Geometry: D/8° SCE/SCI: SCE & SCI
Other Colorimetric Index: WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Repeatibility: ΔE*≤0.03
Color Space: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Measuring Aperture: Φ8mm

Color Reflection Spectropohotometer for Colour Measurement with CIE lab delta E value YS3010



Metal Coating Painting Colour Measuring Spectrophotometer YS3010 with SCE & SCI is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. Metal Coating Painting Colour Measuring Spectrophotometer YS3010 with SCE & SCInot only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.



Technical Specification



Parameters Spectrophotometer YS3010
Optical Geometry d/8°
Repeatibility ΔE*≤0.03
Inter-instrument Agreement ΔE*≤0.15
Measuring Aperture Φ8mm
SCE/SCI SCE&SCI
UV Light Source Yes
Integrating Sphere Size 48mm
Wavelength Range 400nm - 700nm
Wavelength Pitch 10nm
Halfband Width 10nm
Reflectance Range 0 - 200%
Illuminant D65, A, C, D50
Observer Angle 2° & 10°
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Displayed Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Other Colorimetric Index

WI (ASTM E313, CIE/ISO, AATCC, Hunter),

YI (ASTM D1925, ASTM 313),

TI (ASTM E313, CIE/ISO),

MI (Metamerism Index),

Staining Fastness, Color Fastness, Color Strength, Opacity

Light Source Device Combined LED Lamp
Light Source Lifespan 5 years, More than 1.6 million measurements
Sensor 256 Image Element Double Array CMOS Image Sensor
Spectral Device Concave Grating
Aiming Method Camera Locating
Measurement Mode Single Measurement & Average Measurement
Storage Capacity Standard: 1000 Pcs
Sample: 28000 Pcs (One piece can include SCE&SCI)
Data Port USB
Screen 3.5" LCD Touch Screen
Battery Built-in Li-ion Battery, 5000 Measurements within 8 hours
Size 184*77*105mm
Weight 600g
Language English & Chinese
Working Environment Temperature: 0~40℃, Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃, Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap
Optional Accessory Micro Printer, Powder Test Box, Universal Test Component
























































































































Application Introduction

YS3010 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color of liquids like vinegar or wine, powders like flour and paste like ketchup.

Color Reflection Spectropohotometer for Colour Measurement with CIE lab delta E value YS3010

Frequently Asked Questions

1. Which models are the equivalent models to YS3010?
Answer: KONICA MINOLTA CM-2300d and X-rite Ci64 are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
