Portable Colour Difference Meter , NH310 3nh Hunter Lab Colorimeter USB Data Port
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOptical Geometry | 8°/d | Measuring Aperture | Φ8mm & Φ4mm |
---|---|---|---|
Repeatibility | ΔE*≤0.06 | Inter-instrument Agreement | ΔE*≤0.4 |
Data Port | USB | Storage Capacity | 100 Standards & 2000 Samples |
High Light | colour difference meter,paint color analyzer |
Portable Color Meter Colorimeter NH310 3nh brand with color quality software CQCS3
Brief Introduction
NH310 is a model of colorimeter with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like camera viewfinder locating and illumination locating, built-in white plate automatic calibration at startup, two standard measuring apertures and one optional extended aperture for measuring concave surface.
It is configured with multiple light source types, multiple color space systems and color difference formulas, all of which have endowed NH310 with powerful functions to meet the requests of all kinds of color measurements. What's more, its light source types are customable with the options from C, F2(CWF), F6, F7(DLF), F8, F10(TPL5), F11(TL84), F12(TL83/U30).
Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by 3nh, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.
Application Industry
Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.
Technical Specification
Parameters | Colorimeter NH310 |
Optical Geometry | 8°/d |
Measuring Aperture | Φ8mm & Φ4mm |
Repeatibility | ΔE*≤0.06 |
Inter-instrument Agreement | ΔE*≤0.4 |
Measurement Range | L: 0-100 |
Observer Angle | CIE 10° |
Color Space | CIE LAB, CIE XYZ, CIE RGB, CIE LCh, CIE L*u*v |
Color Difference Formula | ΔE*ab, ΔE*Ch, ΔE*CIE94, ΔE*Lab, ΔE*Hunter |
Displayed Data | Colorimetric Value, PASS/FAIL Result, Color Offset |
Other Chromaticity Data |
White Index Yellow Index |
Illuminant | D65, D50, A |
Illuminant Device | Combined LED Light |
Illuminant Lifespan | 5 years, More than 1.6 million measurements |
Sensor | Silicon Photoelectric Diode Array |
Data Storage | 100 Standards, 2000 Samples |
Data Port | USB |
Display Size | TFT 2.7" |
Working Temperature | 0~40℃(32~104℉) |
Storage Temperature | -20~50℃(-4~122℉) |
PC Software | CQCS3 |
Weight | 500g |
Dimension | 205*70*100mm |
Battery | 3200mAh Large Capacity Li-ion Battery |

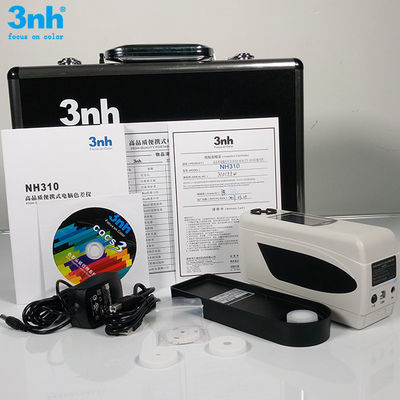

Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover. |
Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
Frequently Asked Questions
1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
