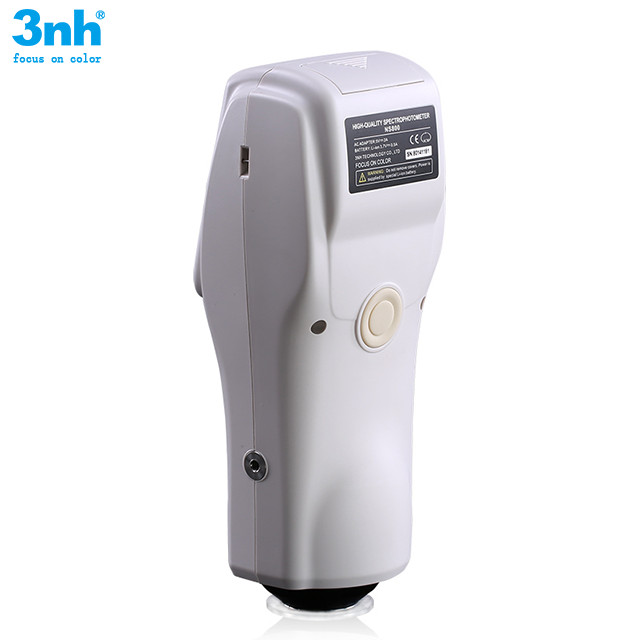

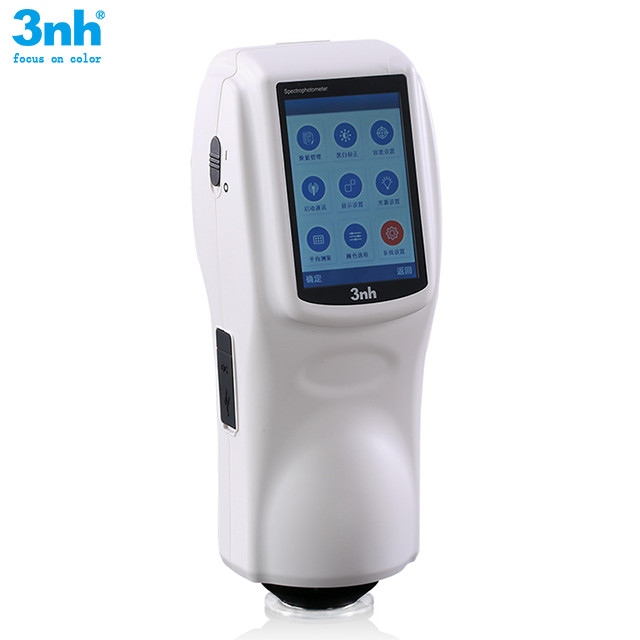

NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis

China NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis supplier
NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis supplier NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis supplier

Large Image :  NS800 Paint Matching Spectrophotometer 58mm Integrating Sphere Size Food Analysis

Product Details:

Place of Origin: Shenzhen, China
Brand Name: 3nh
Certification: CE, TUV, FCC, ISO9001, RohS
Model Number: NS800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time: 2-5 work days
Payment Terms: T/T
Supply Ability: 500 Units per Month
Contact Now
Detailed Product Description
Optical Geometry: 45°/0 Sphere Size: Φ58mm
Repeatibility: ΔE*≤0.04 Inter-instrument Agreement: ΔE*≤0.2
Wavelength Range: 400-700nm Measuring Aperture: Φ8mm
High Light:

paint matching spectrophotometer

,

data colour spectrophotometer

58mm Integrating sphere Size Food analysis spectrophotometer NS800 with 8mm measuring aperture 3nh



Brief Introduction





Certificates: ISO9001:2008; CE; FCC; ROHS; TUV.



NS800 spectrophotometer is developed by 3nh with independent intellectual property rights. It uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis.



NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.



Technical Specification



Parameters Spectrophotometer NS800
Optical Geometry 45°/0
Inte-grating Sphere Size Φ58mm
Measuring Aperture Φ8mm
Repeatibility ΔE*≤0.04
Inter-instrument Agreement ΔE*≤0.2
Observer Angle 2° & 10°
Wavelength Range 400-700nm
Wavelength Pitch 10nm
Reflectance Range 0-200%
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v
Displayed Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt),
Color Strength, Color Stain, Color Fastness
Illuminant D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Illuminant Device Combined LED Light
Illuminant Lifespan 5 years, More than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Data Storage 1000 Standards, 15000 Samples
Data Port USB
Display Size TFT 3.5"
Touch-Screen Yes
Working Temperature 0~40℃(32~104℉)
Storage Temperature -20~50℃(-4~122℉)
PC Software SQC8
Weight 600g
Dimension 90*77*230mm
Battery 3200mAh Large Capacity Li-ion Battery
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box





Application Industry

Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.





Frequently Asked Questions



1. Which models are the equivalent models to NS800?
Answer: BYK 6801 Spectro is the equivalent models to 3nh NS800 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.



58mm Integrating sphere Size Food analysis spectrophotometer NS800 with 8mm measuring aperture 3nh
