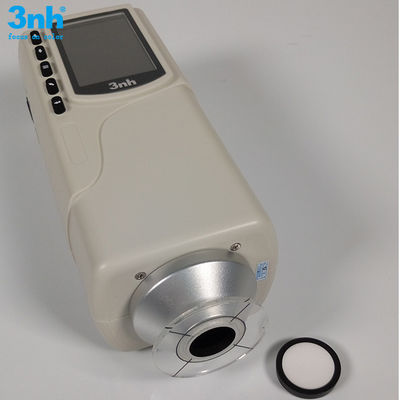

NR20XE 3nh Hunter Lab Colorimeter , Handheld Color Meter 45/0 20mm Large Aperture

NR20XE 3nh Hunter Lab Colorimeter , Handheld Color Meter 45/0 20mm Large Aperture

Product Details:

Place of Origin: Shenzhen, China
Brand Name: 3nh
Certification: CE,RoHs,ISO,etc
Model Number: NR20XE

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 works days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: NR20XE Illuminating/Viewing Geometry: 45/0
Sensor: Silicon Photodiode Array Measuring Aperture: 20mm
Color Space: CIE-Lab, CIE XYZ, CIE-LabCH Illuminant: D65
SCI/SCE: SCE Calibration: Manual
High Light:

portable spectrophotometer colorimeter

,

colour measuring instruments

Product Description

NR20XE 3nh Hunter Lab Colorimeter , Handheld Color Meter 45/0 20mm Large Aperture

Cheap 45/0 20mm large aperture colorimeter portable in food NR20XE 3nh


NR20XE with φ20mm extended aperture and stable end face can test surface stripe and wet products.

Difference between NR20XE and Ordinary Portable Colorimeter:


Product Introduction:

3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore,NR20XE is widely used in color field.



Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by 3nh, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.


When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.

QC Department:

NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.

Applications:

Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.

Specification:

3nh NR20XE Precision Colorimeter
Illuminating/Viewing Geometry 45°/0°
Measuring Aperture Φ20mm
Special Function Especially suitable for testing surface stripe and wet products
Locating Illumination Locating/Cross Locating
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Color Space CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
Color Difference Formula △E*ab; △L*a*b*; △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each
Equipment
≤0.50ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Weight 500g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time First charging time is 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer



Frequently Asked Questions

1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
