Wall Tiles Three Angles Gloss Meter 2.3 Inch Digital Display AA Battery USB Cable Supply Yg268

Wall Tiles Three Angles Gloss Meter 2.3 Inch Digital Display AA Battery USB Cable Supply Yg268

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHs
Model Number: YG268

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 30*20*10cm, 1kg, with a carrying bag
Delivery Time: 1-5 Days
Payment Terms: T/T
Supply Ability: 1000 Units per Month
Get Best Price Contact Now

Detail Information

Measuring Angle: 20° 60° 85° Measuring Area(mm): 20°: 9×10, 60°:9x15, 85°: 5×38
Measuring Range(GU): 0~2000 Division Value: 0.1GU
Tolerance: ±0.2, ±0.2% Data Port: USB & Bluetooth
High Light:

3nh gloss meter

,

tri gloss meter

Product Description

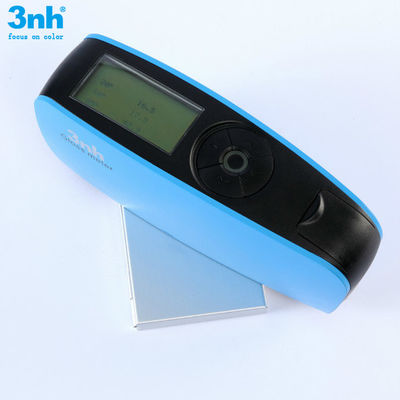

Wall Tiles Three Angles Gloss Meter 2.3 Inch Digital Display AA Battery USB Cable Supply Yg268

Wall tiles three angles gloss meter with 2.3 inch digital display & AA battery USB cable supply yg268



Brief Introduction



YG268 triangle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.



As a new generation of gloss meter of our Shenzhen 3nh, YG268 features the accurate measurement, simple operation and stable performance. Four kinds of measurement modes: Basic mode, Statistic Mode, Continuous Mode, Quality Control Mode.



YG268 has four measuring modes: Basic Mode, the simplest sample measurement mode; Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting; QC Mode: Convenient for quality control at production line.



Wall tiles three angles gloss meter with 2.3 inch digital display & AA battery USB cable supply yg268



Technical Specification



Parameters Tri-angle Gloss Meter YG268
Measuring Angle

20° & 60° & 85°

Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area 20°: 9×10mm, 60°: 9x15mm, 85°: 5×38mm
Measuring Range 20°: 0~2000GU, 60°:0~1000GU, 85°: 0~160GU
Division Value 0.1GU
Measurement Range Repeatability 0-100GU    100-2000GU
± 0.2GU      ± 0.2%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±0.2, ±0.2%
Measuring Time 0.1s
Display Size TFT 2.3"
Data Port USB
Language Chinese, English
Battery 1pcs of No.5 dry cell battery more than 10000 times (within 8 hours)
Dimension 160*52*84mm
Weight 350g
Measuring Mode&Storage

Basic Mode and Continuous Mode: 15000

Statistical Mode: 10000

QA Mode: 10000

PC Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
Operation Temperature 0~40℃ (32~104℉)
Storage Temperature -20~50℃ (-4~122℉)
Humidity <85% Relative Humidity, No Condensation
Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Mini Printer



Application:



Now YG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.



Electronic Power Gloss Meter with Multi Angles 3nh YG268 for Painting Metal Industry



Frequently Asked Questions

1. Which models are the equivalent models to YG268 Gloss Meter?

Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
