High Accuracy Digital Gloss Meter Three Angles YG268 2000gu For Wood Shellac Coated
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeasuring Angle | 60 Degree | Measuring Area(mm) | 60°:9X15 |
---|---|---|---|
Measuring Range(GU) | 1000gu | Division Value | 0.1GU |
Tolerance | ±0.2GU , ±0.2%GU | Data Port | USB |
High Light | paint gloss meter,60 degree gloss meter |

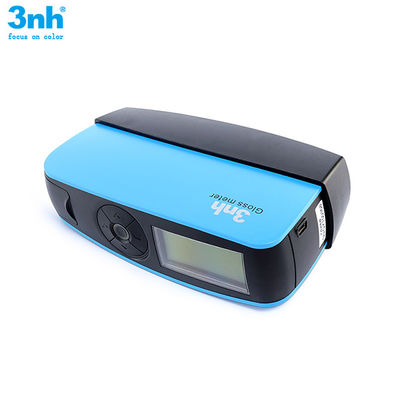

High accuracy digital gloss meter with three angles YG268 2000gu for Shellac coated on wood
YG268 triangle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
As a new generation of gloss meter of our Shenzhen 3nh, YG268 features the accurate measurement, simple operation and stable performance. Four kinds of measurement modes: Basic mode, Statistic Mode, Continuous Mode, Quality Control Mode.
YG268 has four measuring modes: Basic Mode, the simplest sample measurement mode; Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting; QC Mode: Convenient for quality control at production line.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
YG Series Specification Parameter | |||
Model | YG60S 60°Economic Gloss Meter | YG60 60°Accurate Gloss Meter | YG268 Tri-angle Gloss Meter |
Measuring Angle | 60° | 60° | 20° 60°85° |
Measuring Area | 60°: 0-200GU | 60°: 0-1000GU | 20°: 0-2000GU |
60°: 0-1000GU | |||
85°: 0-160GU | |||
Division Value | 1GU | 0.1GU | |
Measuring Modes | Basic mode | Basic mode; Statistic mode; Continuous mode; QC mode | |
Measuring Time | 0.5S | ||
Repeatability | 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
Accurate | Conform with JJG696 second grade requirements of gloss meter | Conform with JJG696 first grade requirements of gloss meter | |
Auto Power-off Time | 30s | Within 30s-120s | |
Long-time Calibration | / | Automatically check and made the calibration | |
Language | Chinese & English | ||
Storage | / | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) | |
Display | 2.3 inch white and black screen | ||
Size | 160*52*84mm | ||
Weight | About 300g | ||
Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | ||
Interface | USB | USB & Bluetooth 2.1 version | |
PC Software | / | GQC6 QC software can printing testing report and with more extended functions | |
Operation Temperature Range | 0-40℃(32-104° F) | ||
Storage Temperature Range | -20-50℃(-4-122° F) | ||
Humidity Range | < 85% RH, without condensation | ||
Standard Accessories | User manual, calibration plate | USB cable, user manual, calibration plate, QC software | |
Optional Accessories | Miniature printer | ||
Notification: the technical parameter is only for reference |
