TFT Display HG268 Multi Angle Gloss Meter USB With 1000gu Measurement Range

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHs
Model Number HG268
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 30*20*10cm, 1kg, with a carrying bag
Delivery Time 1-5 Days
Payment Terms T/T
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 20° & 60° & 85° Measuring Area(mm) 20°:10x10 60°:9x15 85°:5x36
Measuring Range(GU) 20°:0~1000 60°:0~1000 85°:0~160 Division Value 0.1GU
Tolerance ±1.5, ±1.5% Data Port USB
Product Name Gloss Meter
High Light

tri gloss meter

,

gloss level meter

Leave a Message
Product Description

Professional skin tri angle gloss meter with 1000gu measurement range HG268 from 3nh



Technical Specification



Parameters Tri-angle Gloss Meter HG268
Measuring Angle

20° & 60° & 85°

Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area 20°: 10x10mm    60°: 9x15mm    85°: 5x36mm
Measuring Range 20°:0~1000GU   60°:0~1000GU   85°:0~160GU
Division Value 0.1GU
Measurement Range Repeatability
Reproducibility
0-10GU    10-100GU    100-2000GU
± 0.1GU    ± 0.2GU       ± 0.2%GU
± 0.2GU    ± 0.5GU       ± 0.5%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±1.5, ±1.5%
Measuring Time 0.1s
Display Size TFT 3.5"
Screen-touch Non
Data Port USB
Language Chinese, English
Battery 3200m Ah Li-ion Battery , more than 10000 times (within 8 hours)
Dimension 160*75*90mm
Weight 350g
Measuring Mode&Storage

Basic Mode: 1000pcs

PC Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
Operation Temperature 0~40℃ (32~104℉)
Storage Temperature -20~50℃ (-4~122℉)
Humidity <85% Relative Humidity, No Condensation

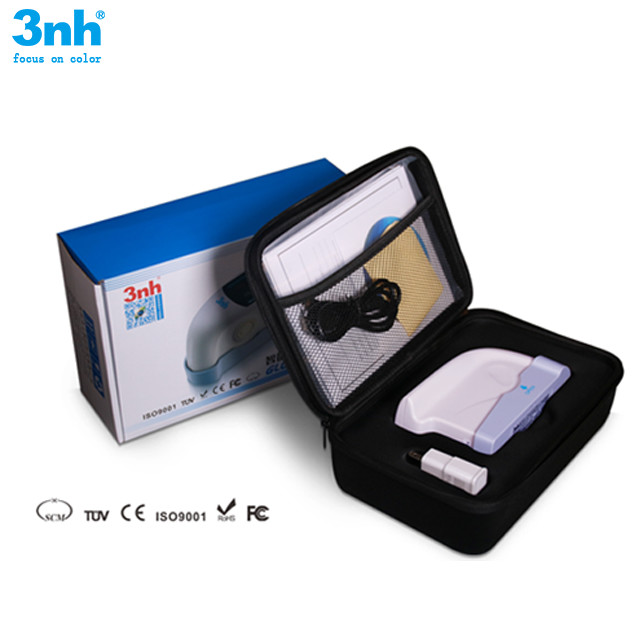

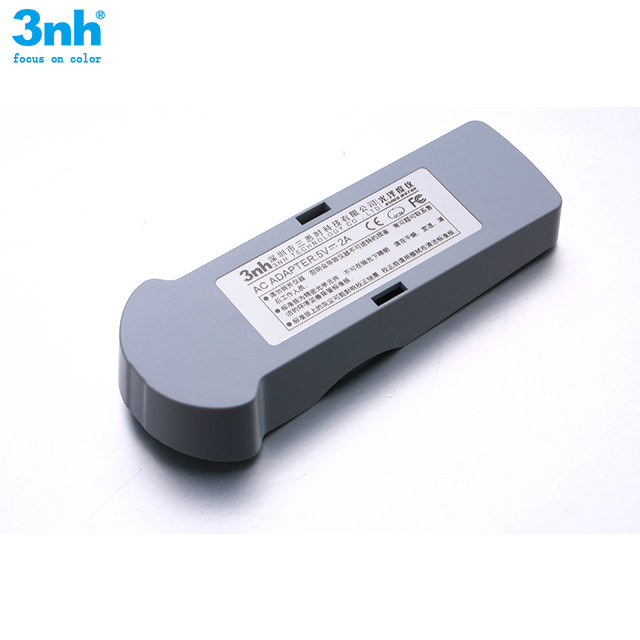

Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Mini Printer



Professional skin tri angle gloss meter with 1000gu measurement range HG268 from 3nh



Brief Introduction



1. HG268 three angles glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

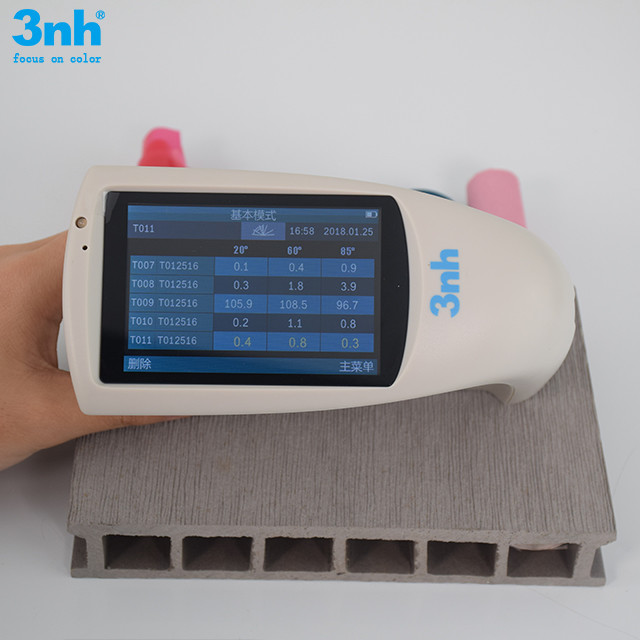

2. As the whole world's first glossmeter which is with a ultra-large display, HG268 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.

3. HG268 has one measuring modes : Basic Mode, the simplest sample measurement mode.

4. Now HG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.



Professional skin tri angle gloss meter with 1000gu measurement range HG268 from 3nh



Frequently Asked Questions



1. Which models are the equivalent models to HG268 Gloss Meter?

Answer: BYK4563 is the equivalent model to 3nh HG268.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
