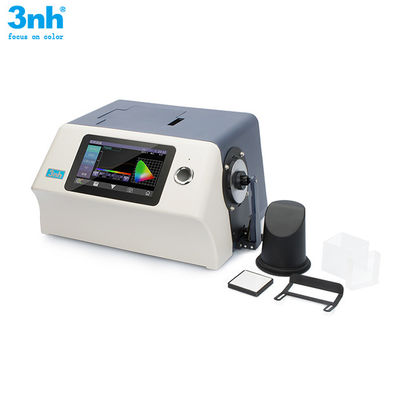

YS6060 Benchtop Colour Measurement Equipment , Handheld Color Spectrophotometer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | D/8 & D/0 | Wavelength | 360-780nm |
|---|---|---|---|
| Repeatibility | DeltaE ≤ 0.03 | Inter-instrument Error | DeltaE ≤ 0.15 |
| Aperture | 25.4mm & 15mm & 8mm & 4mm | Sphere Size | Φ154mm |
| High Light | integrating sphere spectrophotometer,multi angle spectrophotometer |
||
Product Description
YS6060 Benchtop Spectrophotometer for yarn Dyeing factory similar to Datacolor SPECTRO-650
Product Description
Brief Introduction:
YS6060 benchtop grating spectrophotometer, advanced equipment for color testing and measurment,optical geometry of d/8 for reflectance and d/0 for transmittance with SCI&SCE, UV included and excluded, 3nh brand.
Features:
1. Support full illuminants.
2. d/8 optical geometry for reflectance, d/0 for transmittance; both SCI&SCE, UV I+E
3. φ25.4mm/15mm/8mm/4mm multiple measuring apertuers as automative as flexible.
4. UV measurement is availble ,given wavelength range 360nm-780nm, built-in 400nm cut off/420nm cut off 460nm cut off(only xenon lamp edition)
5. Multiple accessories,sample holders,fixation frame are offered as standard to adapt to different working conditions and testing circumstances.
Application Industry
Accurate test and measurement, specific analysis and transmission to the different fields of plastics, electronics,paint and ink, printing,garmets,leather,paper,auto,medical,cosmetics,food,science institute and labs by color management.
Specifications:
| Models | YS6060 | ||||||||
| optical geometry |
reflectance: d/8 (SCI⪰ include UV/Exclude TV); transmittance: d/0(SCI&SCE: included UV/Exclude UV) conforms to CIE no.15, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
||||||||
|
integrating sphere size |
Φ154mm | ||||||||
| light source device | 360-780nm combined led lamp, 400nm cut-off,420nm cut-off,uv lamp | ||||||||
| sensor | 256 image element double array cmos image sensor | ||||||||
| wavelength pitch | 10nm | ||||||||
| semiband width | 10nm | ||||||||
| measuring aperture |
reflective Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/8mm, Φ6mm/4mm transmissive: Φ30mm/25.4mm |
||||||||
| specular component | reflectance: sci sce, transmittance: sci,sce | ||||||||
| color space | CIE LAB,XYZ,Yxy,LCh,CIE,LUV,musell,s-RGB,HunterLab,βxy,DIN | ||||||||
| color difference formula |
delta E ab, delta E uv, delta E 94,delta E cmc( 2:1), delta E(1:1),delta E 00, DIN delta E99,delta E(hunter) |
||||||||
| colorimetric index |
WI(ASTM E313, CIE ISO, AATCC, Hunter), Yi ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), MI(metamerism index), staining fastness, color fastness,color strength, opacity,garden index, pt-coindex,555 index. |
||||||||
| observer angle | 2°/10 ° | ||||||||
| Illuminants | D65A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 | ||||||||
| displayed data |
spectrogram /values,chromaticity values, color difference values/graph, pass fail result,color offset |
||||||||
| repeatability |
|
||||||||
| inter-instrument error | Φ25.4mm/SCI within delta E*ab 0.15(average for 12 bcra series ii color tiles) | ||||||||
| size | 370*30*200mm | ||||||||
| weight | 9.6KG | ||||||||
| power supply | DC 24V,2A power adapter | ||||||||
| light source device life | 5 years, more than 3 million times measurements | ||||||||
| screen | 7 inch capacitive screen-touch display | ||||||||
| data port | USB&bluetooth | ||||||||
| data storage capacity | standard:5000pcs; sample:40000pcs.(one PCS can include both SCI and SCE) | ||||||||
| language | Enlgish&Chinese | ||||||||
| working environment | temperature:0~40°C; humidity:0-85%(no condensation) | ||||||||
| storage environment | temperature:-20~50°C; humidity:0-85%(no condensation) | ||||||||
| standard accessory | white and black calibration board, checking green board, sample holder,Φ4mm,Φ8mm,Φ15mm,Φ25.4mm aperture, powder adapter, usb cable, user guide, PC software | ||||||||
| Optional Accessory | micro-printer,transmissive test clamp component |

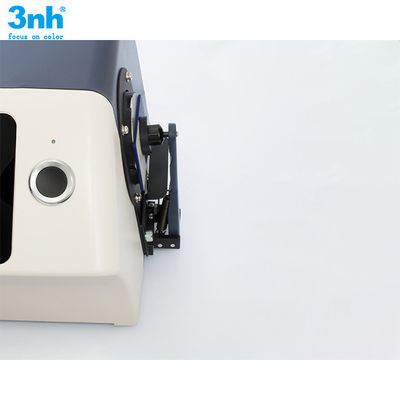

photo image:
Packaging & Shipping
Package: Alumnium alloy metal box, carton package.
Payment: T/T, Western Union, Paypal
Lead Time:1-3 workdays
Shipping methods: DHL, Fedex, UPS, EMS
Company Information
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise, owning 20-year experience in researching, developing, producing and marketing the photoelectric detection products in photoelectric detection technology field and color management field.
Our main product range includes:
-grating spectrophotometer
-spectrophotometer
-colorimeter
-gloss meter
-ISO1233 resolution test chart
-optical image test solution and specific standard illuminants
The spectrophotometer equipments of 3nh conforms to CIE No.15,ISO77241,ASTM E1164,DIN5033 Teil.
Our Certificates: ISO9001:2008; CE; FCC; ROHS; TUV.
Cooperations partners in the long term are as listed:
Domestic: LG, Lenovo, Huawei, Kelon, Youngor, Haier, Media, Galanz, Kelon, Power Dekor
Overseas: Philips, Sony, Simens, Emerson, Colgate, Unilever, Nike, Seiko, YKK
Brand name: 3nh® , Tilo® (trademark)
Your inquiries are highly welcomed by me! Quick response provided within 24 hours.
Attached:
Related knowledge about spectrophotometer
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
| Delta E | Meaning |
| 0~1 | A normally invisible difference |
| 1~2 | Very small difference, only obvious to a trained eye |
| 2~3.5 | Medium difference, also obvious to an untrained eye |
| 3.5~5 | An obvious difference |
| >6 | A very obvious difference |
