NH300 Color Difference Meter Testing Equipment Colorimeter With 8mm Measurement Aperture

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE,RoHs,ISO,etc.
Model Number NH300
Minimum Order Quantity 1pc
Price discuss
Packaging Details Standard export package
Delivery Time 2 work days
Payment Terms T/T,Paypal, etc
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NH300 Locating Illumination Locating
Calibration Manual Accuracy Delta E <0.07
Light Source D65 Color Space Lab XYZ
High Light

colour difference meter

,

paint color analyzer

Leave a Message
Product Description

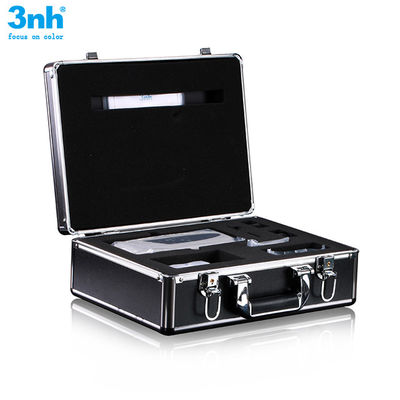

NH300 Color Difference Testing Equipment Colorimeter with 8mm Measurement Aperture

Brief Introduction:



With 8mm measurement aperture, NH300 portable colorimeter is the highest cost-effective model which is widely used in fabrics, paper, plastic parts, building materials. The standard configuration software CSCQ3 is able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.



Compare with NH310, the NH300 is cheaper than NH310 Colorimeter and the accuracy is very close. But NH310 with more function when compare with NH300 Colorimeter. In a word, NH300 colorimeter is the basic mode, and NH310 is the high-end mode.Which mode is best are depend on your requirements and budget for this machine.

NH300 Color Difference Testing Equipment Colorimeter with 8mm Measurement Aperture



Specification:



  NH300 Portable Colorimeter NH310 Portable Colorimeter
Illuminating/ Viewing Geometery 8/d 8/d
Measuring Aperture 8mm 8mm&4mm
Detector Silicon Photoelectric Diode Silicon Photoelectric Diode
Color Space CIE L*a*b*C*h; CIE L*a*b CIE L*a*b*C*h; CIE L*a*b, CIEXYZ,CIE RGB,CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness
Color Difference Formula △E*ab △L*a*b △E*C*h △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter
Light Source D65 D65 D50 A
Light Source Device LED blue light excitation LED blue light excitation
Errors Between Each Equipment ≤0.40ΔE*ab ≤0.40ΔE*ab
Storage 100pcs standards 20000pcs samples 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.07
Average of 30 measurements of standard white plate
Standard deviation within ΔE*ab 0.06
Average of 30 measurements of standard white plate
Weight 500g 500g
Dimension 205×70×100 mm 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements 5 years, more than 1.6 million measurements
Charging Time 2 hours (first time 8 hours--100% electricity 2 hours (first time 8 hours--100% electricity
Measurement Times Before Recharging More than 3000 times More than 3000 times
Operating Temperature/Humidity Range -10~40℃, relative humidity 0~85% with no condensation -10~40℃, relative humidity 0~85% with no condensation
Data Interface USB USB
Extended Aperture (optional) / Φ8mm extended aperture, available for measuring concave surface
Printer (optional) Miniature thermal printer Miniature thermal printer



Application:



3nh colorimeter are widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, automotive, toy...industries.
