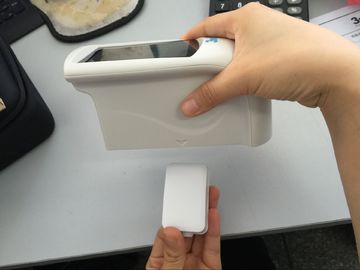

High Accuracy Paint Gloss Meter , 3nh HG60 60 Degree Gloss Meter 300gu USB Data Port

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHs
Model Number HG60
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 30*20*10cm, 1kg, with a carrying bag
Delivery Time 1-5 Days
Payment Terms T/T
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 60° Measuring Area(mm) 60°:9x15
Measuring Range(GU) 60°: 0~300 Division Value 0.1GU
Tolerance ±1.5, ±1.5% Data Port USB
High Light

60 degree gloss meter

,

portable gloss meter

Leave a Message
Product Description

High accuracy gloss meter price 3nh HG60 cheap glossmeter with 300 gu

Product Description



Parameters Single-angle Gloss Meter HG60
Measuring Angle

60°

Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area 60°: 9x15mm
Measuring Range 60°:0~300GU
Division Value 0.1GU
Measurement Range Repeatability
Reproducibility
0-10GU 10-100GU 100-300GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±1.5, ±1.5%
Measuring Time 0.1s
Display Size TFT 3.5"
Screen-touch Yes, Capacitive Touch Screen
Data Port USB
Language Chinese, English
Battery 3200mAh Li-ion Battery , more than 10000 times (within 8 hours)
Dimension 160*75*90mm
Weight 350g
Measuring Mode&Storage Basic Mode: 1000
PC Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
Operation Temperature 0~40℃ (32~104℉)
Storage Temperature -20~50℃ (-4~122℉)
Humidity <85% Relative Humidity, No Condensation
Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Mini Printer

NHG268 (41)NHG268 (28)NHG268 (45)

Packaging & Shipping



Size 29*19*10mm
Gross weight 1.5kg
Standard accessory Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional accessory micro printer

NHG268 (30)

Our Services

We passed CE, ISO 9001, ROHS, FCC, TUV, SCM certifications,





We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.

certificate 1

Company Information



Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.



Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.



The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.

High Accuracy Paint Gloss Meter , 3nh HG60 60 Degree Gloss Meter 300gu USB Data Port 5

FAQ



1. Which models are the equivalent models to HG60 Gloss Meter?

Answer: BYK4561 is the equivalent model to 3nh HG60, they share the very close measured values.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
