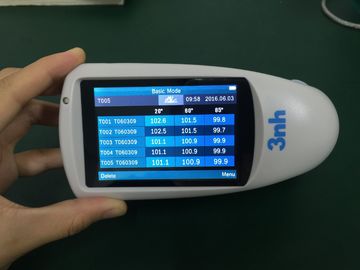

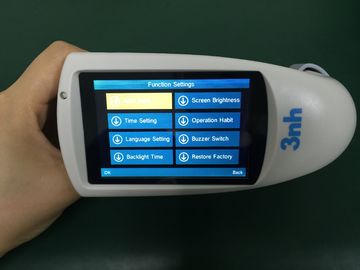

Auto Calibration Multi Angle Gloss Meter NHG268 For Car Paint Polishing Brick Surface

China Auto Calibration Multi Angle Gloss Meter NHG268 For Car Paint Polishing Brick Surface supplier
Auto Calibration Multi Angle Gloss Meter NHG268 For Car Paint Polishing Brick Surface supplier Auto Calibration Multi Angle Gloss Meter NHG268 For Car Paint Polishing Brick Surface supplier

Large Image :  Auto Calibration Multi Angle Gloss Meter NHG268 For Car Paint Polishing Brick Surface

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHs
Model Number: NHG268

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 30*20*10cm, 1kg, with a carrying bag
Delivery Time: 1-5 Days
Payment Terms: T/T
Supply Ability: 1000 Units per Month
Contact Now
Detailed Product Description
Measurement Standard: Conform With JJG696 First Class Glossmeter Working Requirement Chromaticity Corresponding: Corresponding With CIE 1931(2°) Under CIE C Light Source
Screen: TFT 3.5 Inch, Capacitive Touch Screen Division Value: 0.1GU
Tolerance: ±1.2, ±1.2% Language: Chinese, English



3NH 20 60 85 triangle auto calibration gloss meter NHG268 glossmeter car paint polishing brick floor surface gloss meter



Brief Introduction



NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.


NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Technical Specification



Model  Tri-angle Gloss Meter NHG268
Measuring Angle 20° & 60° & 85°
Measuring Area 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm
Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU
Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Repeatability 0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measuring Storage 5000
PC Software GQC6 Quality Control Software with QC Report Printing Functions


Standard Accessories



Standard Accessories
1 Power Adapter
2 USB Cable
3 User Manual
4 CD (Including QC Software)
5 Calibration Plate


Frequently Asked Questions

1. Which models are the equivalent models to NHG268 Gloss Meter?
Answer: BYK4446 is the equivalent model to 3nh NHG268.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

3NH 20 60 85 triangle auto calibration gloss meter NHG268 glossmeter car paint polishing brick floor surface gloss meter

Packaging & Shipping



Size 29*19*10mm
Gross weight 2kg
Standard accessory Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional accessory micro printer,



3nh gloss meter angles
