20 60 85 Degree Auto Calibration Gloss Level Meter 3NH NHG268 For Ceramic Floor Surface

China 20 60 85 Degree Auto Calibration Gloss Level Meter 3NH NHG268 For Ceramic Floor Surface supplier
20 60 85 Degree Auto Calibration Gloss Level Meter 3NH NHG268 For Ceramic Floor Surface supplier 20 60 85 Degree Auto Calibration Gloss Level Meter 3NH NHG268 For Ceramic Floor Surface supplier 20 60 85 Degree Auto Calibration Gloss Level Meter 3NH NHG268 For Ceramic Floor Surface supplier

Large Image :  20 60 85 Degree Auto Calibration Gloss Level Meter 3NH NHG268 For Ceramic Floor Surface

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHs
Model Number: NHG268

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 30*20*10cm, 1kg, with a carrying bag
Delivery Time: 1-5 Days
Payment Terms: T/T
Supply Ability: 1000 Units per Month
Contact Now
Detailed Product Description
Measurement Standard: Conform With JJG696 First Class Glossmeter Working Requirement Chromaticity Corresponding: Corresponding With CIE 1931(2°) Under CIE C Light Source
Screen: TFT 3.5 Inch, Capacitive Touch Screen Division Value: 0.1GU
Tolerance: ±1.2, ±1.2% Language: Chinese, English

3NH 20 60 85 degree auto calibration gloss meter NHG268 tri glossmeter for ceramic floor surface

Introduction:

NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source. NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Pictures:

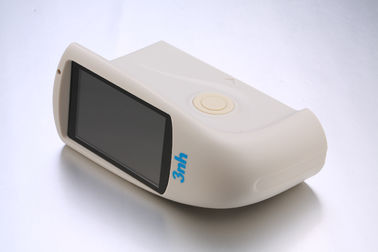

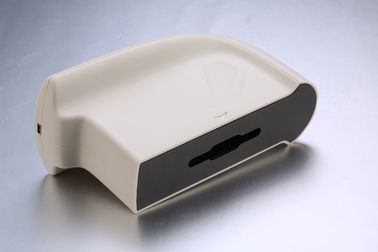

NHG268 (32)

NHG268 (34)



NHG268 (29)

NHG268 (5)

NHG268 (38)



Features:



1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. One button for all angles measurement at the same location

3. Display 5 sets of measurement data, good for comparison

4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

5. Continuous mode to check uniformity over large areas

6. Connect to PC, more extend functions

7. Input gloss value manually

8. Large touch screen operation, easy to use

9. Beauty appearance, good man-machine communication interface

10. Powerful functions to meet many different requirements





Specification:





NHG268 Multi-angle Precise Smart Gloss Meter
Model NHG268
Measuring Angle 20°/60°/85°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area(mm) 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU
Division Value 0.1GU

Measurement Range Repeatability

Reproducibility

0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±1.2, ±1.2%
Measuring Time 0.1s
Display Size TFT 3.5"
Touch-Screen Yes, Capacitive Touch Screen
Data Port USB & RS232
Language Chinese/English
Battery 3200mAh Li-ion Battery , >10000 times(within 8 hours)
Dimension 160*75*90mm
Weight 350g
Measuring Mode&Storage Basic Mode: 1000; Statistical Mode: 5000; Continuous Mode: 5000
Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions.
Operation Temperature 0~40(32~104)
Storage Temperature -20~50(-4~122)
Humidity <85% Relative Humidity, No Condensation

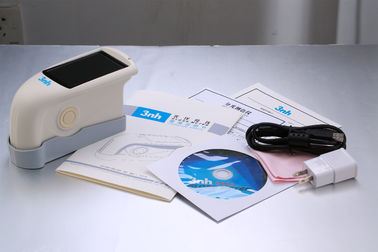

Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Miniature Printer
