P120 Color Matching Booths Light Box Color Assessment Cabinet With D65 TL84 CWF UV F TL83
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | P120 | Size | 131*60*80CM |
|---|---|---|---|
| Light Sources | D65, TL84, CWF, F, UV,TL83 | Standard | ASTM D1729, ISO3664, DIN, ANSI And BSI |
| Weight | 65kg | Lamp Length | 120cm |
| High Light | colour matching cabinet,pantone color viewing light booth |
||
Product Description
P120 Color matching booths / Colour assessment cabinet / Color Light Box with D65,TL84,CWF,UV,F,TL83
Brand: TILO,Made in China
P120 (oversize) can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
P120 Color light box Application:
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light
Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
P120 Color light box Features:
Ø TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.
About Light Sources:
| Light Source | Color Viewing Booths Application | Color Temperature(K) | Power(W) |
| D65 | International Standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe,Japan and China | 4000 | 18 |
| CWF | Cool White Fluorescent American Standard | 4150 | 18 |
| F/A | "Sun-set Light Yellow" Incandescent Light Source | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. | Wavelength: 365nm | 20 |
| U30 | Warm White Fluorescent, American Standard | 3000 | 18 |

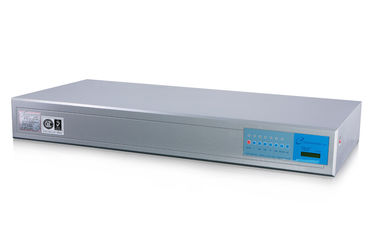

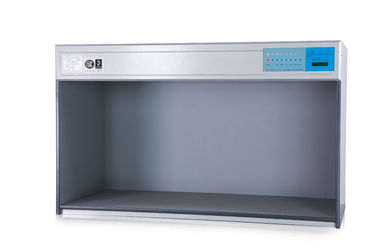

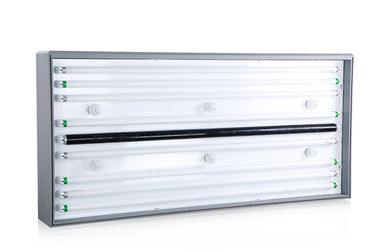

Product Images:
Product Introduction:
P120 can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
| Order Model | Configured Light Sources | Weight | Dimension(mm) |
| P120 Color Light Box | D65,TL84,F,UV,CWF,TL83 | 65kg | 1310x600x800 |
Packing & Delivery:
| Size | 140*71*40cm |
| Gross weight | 60kg |
| Standard accessory | D65 2pcs, TL84, 2 pcs, UV 1 pcs, CWF 2 pcs, TL83 2 pcs, F 6 pcs |
| Optional accessory | 45 degree table |
Company Information:
Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
Certificates:
ISO9001, CE, FCC, ROHS, TUV
