HC5100/HC3100 Resolution Test Chart LED Transmission Light Box 3100k AC100-240V

  • HC5100/HC3100 Resolution Test Chart LED Transmission Light Box 3100k AC100-240V
  • HC5100/HC3100 Resolution Test Chart LED Transmission Light Box 3100k AC100-240V
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE
Model Number HC3100
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 7KG
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 50 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Temperature 3100k Illuminance 0-11000lx Adjustable
Life Span More Than 25000 Hours Light Panel Size 25W*19Hcm
CRI ＞90% Illuminance Evenness ＞92%
Volume 37W*32.5H*16.5Dcm Power AC100-240V, 50/60Hz
Light Device LED Lamps Array
High Light

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

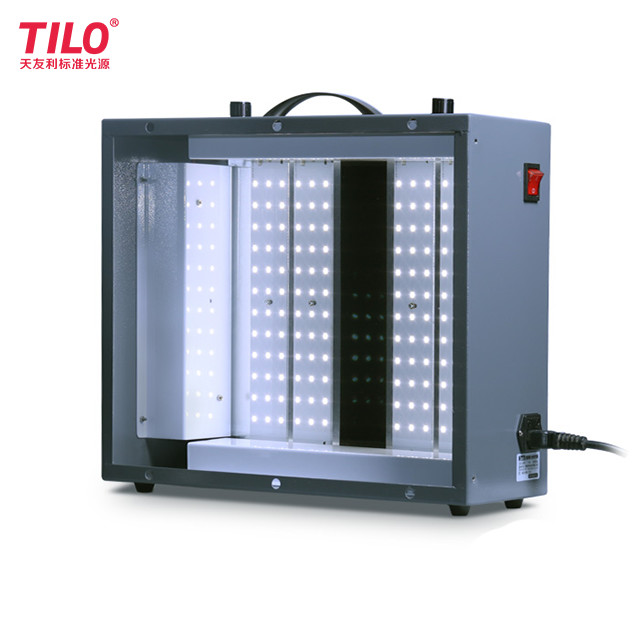

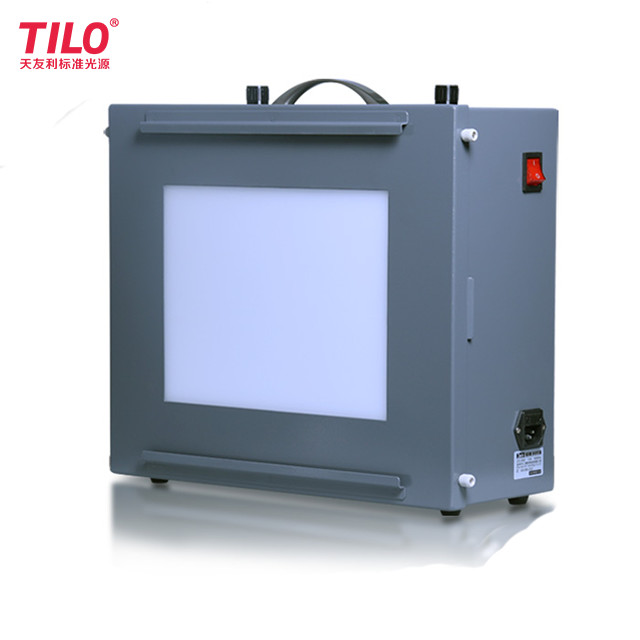

HC5100/HC3100 Chart Testing LED Transmission Light Box



Product Overviews


The 3nh Standard Color Viewer HC5100/3100 delivers the uniform, color consistent and no-flicker lighting associated with LED technology, which benefits to evaluate the camera performance with reliable and professional platform.




Product Description

Performance Highlights

l Illumination uniformity >90%,Extensive color rendering index CRI>90

l LED dimmable dynamic range 0-30000lx, Flicker Free

l Standard Color CCT5100/3100±100K,Duv±0.002

l Excellent color/flux stability over 3 years life

l 60%+ higher efficiency than fluorescent light tube, Hg Free





General information

l Power supply:AC100-240V,50/60HZ,50W

l Environment required,Temperature10-40℃,<RH80%

l Size:37W*32.5H*16.5Dcm

l Projection area:25W*19Hcm

l Net weight ~6kg



Warning

l Do not connect with power grid other than AC100-240V before turning on the light

l Suggest waiting for 10 minutes to get stable color after turning on the light

l Be careful to prevent scratching diffusingreflection plate and clean by non-dust wiper with alcohol



Detailed Images

D77A6557D77A6559D77A6560DNP 2

Warranty
Camera Image Quality Test Standard Color Viewer transmission light box HC5100/3100 have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.



About US
Shenzhen 3nh Technology Co., Ltd. is a high-tech company who specializes in researching and developping, designing and manufacturing testing and measuring instruments and equipment. We have owned a 19 years accumulation of technology and experience in color and gloss management field, since founded in 1998.

Our Certificates: ISO9001:2015-2017; CE; FCC; ROHS; TUV; SCM;

Shenzhen 3nh Technology Co., Ltd.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, 3nh launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
company detail_MG_3639



FAQ



1. Which models are the equivalent models to HC3100?
Answer: DNP Transmissive Light Box SDCV-3500 is the equivalent model.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you supply the corresponding transmissive camera test charts?

Answer: Yes, of course we supply the transmissive camera test charts. We are also now the best manufacturer of camera test charts in China.
