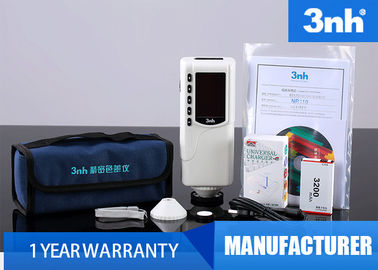

4mm Measuring Aperture 3nh Colorimeter Color Difference Meter NR110 Illuminance / Cross Locating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | NR110 | Light Source | LED Blue Light Excitation |
|---|---|---|---|
| Measuring Aperture | 4mm | Color Space | CIE L*a*b*c*h,CIEL*a*b, CIEXYZ |
| Locating | Illuminance And Cross Locating | Storage | 100pcs Standards 20000pcs Samples |
| Dimension | 205*67*80mm | Repeatability | Delta E*ab 0.08 |
| PC Software | CQCS3 | ||
| High Light | portable spectrophotometer colorimeter,digital color meter |
||
Product Description
Color Difference Meter Precise NR110 with QC Software Portable digital Colorimeter
Brief Introduction:
High cost-effective precise colorimeter features with powerful functions and excellent innovation technology.Double Locating: Illuminating locating and cross locating; Double Measurement End Face: Large area measurement and small area measurement; New Integrating Sphere Design: More stable measurement; Equipped with Rechargeable High-Capacity Li-ion Battery.
Advantages:
Built-in white plate parameters: No need to calibrate each time which realize rapid measurement.
New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and
auxiliary optical path. Having the advantages of the highest measurement stability and precision.
Equipped with rechargeable high-capacity Li-ion battery.
Configure CQCS3 software: Connect PC computer to realize more functions.
Cross Platform Measuring Aperture &Small Area Measuring Aperture
Features:
- Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
- Double Locating: Illuminating locating and precise cross locating.
- Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
- New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Having the advantages of the highest measurement stability and precision.
- 4mm Measuring Aperture.
- Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Configure CQCS3 software. Connect PC computer to realize more functions.
- Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
- Hand-head structure: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
- Spending huge sums on high-end mold. Product consistency approaches 100%.
- High cost performance: large output, good quality, cheap products.
Specifications:
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end face and small concave-convex end face |
| Color Space |
CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability |
Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Language | English/Chinese |
| Weight | 450g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 8 hours--100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) | Miniature thermal printer |
Application:
The colorimeter is widely used in plastic, metal, electronic, paint, ink,
textile, garment, printing and dyeing,food, medical, cosmetic, automotive,
toy...industries.
