YG60 60 Degree Tri Gloss Meter 1000gu Compare To Byk Spectro Guide Sphere Glossmeter

Place of Origin Shenzhen,China
Brand Name 3nh
Certification CE,RoHs,ISO,ASTM etc.
Model Number YG60
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YG60 Measuring Angle 20
Division Value 0.1GU Measuring Range 0-2000GU
Accurate Confirm With JJG696 First Grade Measuring Time 0.5s
Display 2.3 Inch Black And White Screen Storage 35000
High Light

paint gloss meter

,

60 degree gloss meter

Leave a Message
Product Description

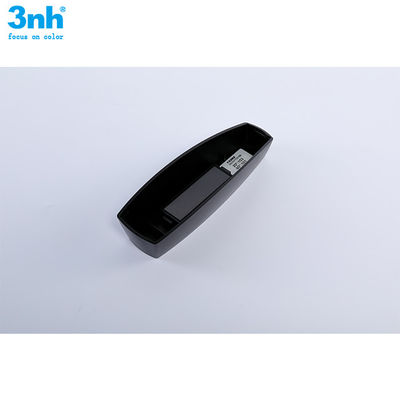

YG60 60 degree digital glossmeter 1000 gu compare to byk spectro-guide sphere glossmeter



Brief Introduction:



YG60 gloss meter features with 60°  angle, manufactured according to ISO2813 and GB/T 9754. YG series gloss meter is independently developed by Shenzhen ThreeNH Technology Co.,Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.





Features:



  • 60° angle for semi gloss;
  • with auto-calibration function;
  • elegant design combined with aesthetics and ergonomics;
  • large storage to save over 1500 datas;
  • Meet the first grade requirements of JJG696;
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.
  • can realize auto power on & off automatically within 30s-120s



Application:



YG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



Specifications:



YG60 Economic Gloss Meter
Model: YG60
Measuring Angle 60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 9x15
Measuring Range 60° :0-1000GU;
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-100GU 100-2000GU
± 0.2GU   ± 0.2%GU


Measurement Standard Conform with JJG696 first class glossmeter working requirement
Auto Power-off Time  Within 30-120s
Long-time Calibration  Automatically finished calibration
Measuring Time 0.5s
Dimension L*W*H : 160mm*52mm*84mm
Weight 300g
Language Chinese/English
Power Supply 1pc dry-cell battery or use USB charge
Display 2.3 inch black and white screen
Interface USB
Storage 1500
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except YG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.





GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.
