|Measuring Angle:||20° 60° 85°||Measuring Area(mm):||20°: 9×10, 60°:9x15, 85°: 5×38|
|Measuring Range(GU):||0~2000||Division Value:||0.1GU|
|Tolerance:||±0.2, ±0.2%||Data Port:||USB & Bluetooth|

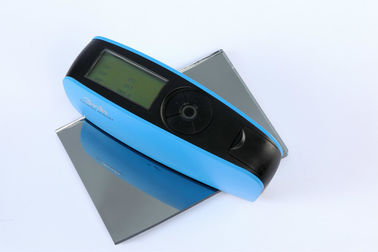

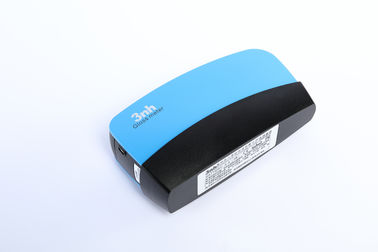

3nh yg268 Tri Gloss Meter with three angles 20 60 85 degree for 2000gu glossy difference measurement
YG series gloss meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
|YG Series Specification Parameter|
|Model||YG60S 60°Economic Gloss Meter||YG60 60°Accurate Gloss Meter||YG268 Tri-angle Gloss Meter|
|Measuring Angle||60°||60°||20° 60°85°|
|Measuring Area||60°: 0-200GU||60°: 0-1000GU||20°: 0-2000GU|
|Measuring Modes||Basic mode||Basic mode; Statistic mode; Continuous mode; QC mode|
|Repeatability||0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU||0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU||0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU|
|Accurate||Conform with JJG696 second grade requirements of gloss meter||Conform with JJG696 first grade requirements of gloss meter|
|Auto Power-off Time||30s||Within 30s-120s|
|Long-time Calibration||/||Automatically check and made the calibration|
|Language||Chinese & English|
|Storage||/||35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)|
|Display||2.3 inch white and black screen|
|Power Supply||1pc dry-cell battery(can measure 10000 times) or use USB Charge|
|Interface||USB||USB & Bluetooth 2.1 version|
|PC Software||/||GQC6 QC software can printing testing report and with more extended functions|
|Operation Temperature Range||0-40℃(32-104° F)|
|Storage Temperature Range||-20-50℃(-4-122° F)|
|Humidity Range||< 85% RH, without condensation|
|Standard Accessories||User manual, calibration plate||USB cable, user manual, calibration plate, QC software|
|Optional Accessories||Miniature printer|
|Notification: the technical parameter is only for reference|
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Frequently Asked Questions
1. Which models are the equivalent models to YG268 Gloss Meter?
Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
