TILO Colorcontroller Color Viewing Light Box P60 6 Color Assessment Cabinet With D65 TL84 F UV CWF TL83
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions(mm) | 710*530*570 Mm | Color | N7 Grey |
|---|---|---|---|
| Weight | 35Kg | Light Source | D65, TL84, CWF, F, UV, TL83 |
| Name | P60(6) | Certification | CE |
| High Light | color checking light box,color matching booth |
||
Product Description

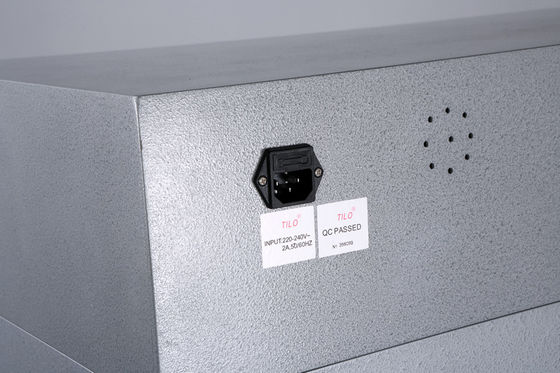

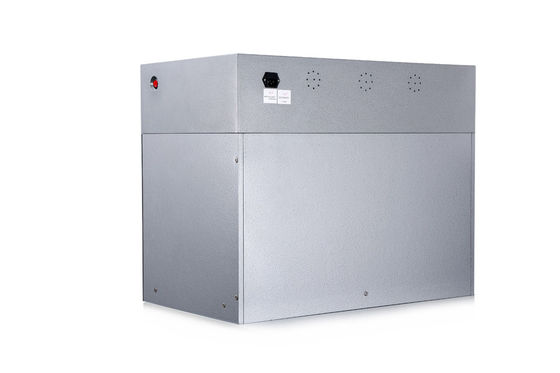

TILO colorcontroller color viewing light box p60(6) p60(6) color assessment cabinet with D65, TL84, F, UV,CWF,TL83 six light sources
Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 28Kg
Dimensions(WxDxH): 710x530x570 mm
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth / color viewing box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / color viewing box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
TILO P60(6) color light box color assessment cabinet has 6 light sources D65, TL84, UV, F, CWF, TL83 and it is used for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Tilo started from 1998, and it has 20 years experience in this color light box industry.
Features:
1. TILO Color light booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.
Specifications:
| Order No. | Name | Model | D65 | TL84 | F | UV | CWF | TL83 | Voltage |
| 10113 | Standard light source booth | P60(6) six light source(220V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 220V/50Hz |
| 10813 | Standard light source booth | P60(6) six light source(115V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 115V/60Hz |
Optional accessories: light source diffuser 45 degree standard stand.
Light Sources:
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| CWF | (Cool White Fluorescent) American Standard | 4150 | 18 |
| F/A | "Sun-setting Light Yellow" incandescent light source(imitation of sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments |
Wave length:365nm | 20 |
| TL83 | Warm White Fluorescent American Standard | 3000 | 18 |
Packing List:
| No. | Name | Quantity |
| 1 | Light Booth Top Cover | 1 pcs |
| 2 | Light Booth Bottom | 1 pcs |
| 3 | Light Booth Back Cover | 1 pcs |
| 4 | Light Booth Side Cover | 2 pcs |
| 5 | Power Adapter | 1 pcs |
| 6 | Operating Manual | 1 pcs |
| 7 | Warranty Card | 1 pcs |
| 8 | D65 Light Tube | 2 pcs |
| 9 | TL84 Light Tube | 2 pcs |
| 10 | UV Light Tube | 1 pcs |
| 11 | F Light Tube | 4 pcs |
| 12 | CWF Light Tube | 2 pcs |
| 13 | TL83 Light Tube | 2 PCS |
Remarks: Optional tubes D50, D75, U30,TL83, U35, A. If you need, please let us know your detail requirement.
