Dot Area Percent Tone Increase Integrating Sphere Spectrophotometer CMYK Density YD5010

Dot Area Percent Tone Increase Integrating Sphere Spectrophotometer CMYK Density YD5010

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHS, ISO9001
Model Number: YD5010

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Please send inquiry
Packaging Details: 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time: 2-5 Days
Payment Terms: T/T
Supply Ability: 500 Units per Month
Get Best Price Contact Now

Detail Information

Testing Conditions: M O, M 1,M 2 , M 3 Standard: ISO 5-4,CIE No.15
Measurement Geometry: 45/0(45 Ring-shaped Illumination, 0 Degree Viewing Angle) Repeatibility: ΔE*≤0.04
Color Space: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Measuring Aperture: 8mm And 4mm Apertures
High Light:

integrating sphere spectrophotometer

,

multi angle spectrophotometer

Product Description

Dot Area Percent Tone Increase Integrating Sphere Spectrophotometer CMYK Density YD5010

1. Product Profile



YD5010 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.



2. Detailed Technical Parameter / Specification Form



Technical Parameter Items YD5010 Portable Spectro-densitometer
Product Category Optical Density Measurement Instrument
Product Name Portable Spectro-densitometer
Application For the measurement of optical density and colors in industries like printing, packaging and ink, film, plastics and electronics, etc.
Optical Geometry

45°/0

Conform to standards ISO 5-4, CIE No.15

Measuring Apertures Customize One Aperture from: ∅2mm / ∅4mm / ∅8mm
Measurement Conditions

Conform to the measurement conditions of ISO 13655

M0 (CIE Light Source A)

M1 (CIE Light Source D50)

M2 (Illuminance Excluding UV)

M3 (M2 + Polarization Filter)

Density Standards ISO Status T, E, A, I
Density Index Density Value, Density Difference, Dot Area, Dot Gain, Overprint, Printing Characteristics, Printing Contrast, Chromaticity Difference, Greyscale.
Color Spaces CIE LAB, XYZ, Yxy, LCh.
Color Difference Formulas ΔE*ab, ΔE*94, ΔE*00
Repeatability Error

For Color: ΔE*Lab≤0.04

For Density: Within 0.01D

Inter-instrument Error For Color: ΔE*Lab≤0.2
Other Colorimetric Index Non
Information Displayed Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction
Viewing Angle 2° & 10°
Illuminating Lamps Combined LED Lamps, UV Lamps
Lamps Life-span 5 Years, more than 3 Million times of measurements.
Wavelength Range 400nm - 700nm
Wavelength Pitch 10nm
Semiband Width 10nm
Reflectance Range 0∼200%
Illuminants D65, A, C, D50, D55, D75, F2(CWF), F7(DLF), F11(TL84), F12(TL83/U30), UV.
UV Light Source Yes. Include UV / Exclude UV.
Sensor 256 Image Element Double Array CMOS Image Sensor
Spectroscope Concave Grating
Location Method By Locating Plate
Measurement Time 1.5s
Data Storage Capacity 10000 pcs of data
Data Transmission Port USB
PC Terminal Software SQCX (for free)
Display Screen 3.5 inches TFT Capacitance Screen-touch Display
Language Built-in English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)
Power Supply Built-in Rechargeable Battery, Power Adapter
Working Environment Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
Storage Environment Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
Standard Accessories White and Black Calibration Board, Customized Aperture, Power Adapter, USB Cable, PC Software SQCX, Bluetooth Adapter, Polarization Filter, Locating Plate, User Guide.
Optional Accessories Mini Thermal Printer
Weight 600g
Dimension 184*77*105mm



3. Detailed Introduction to Instrument

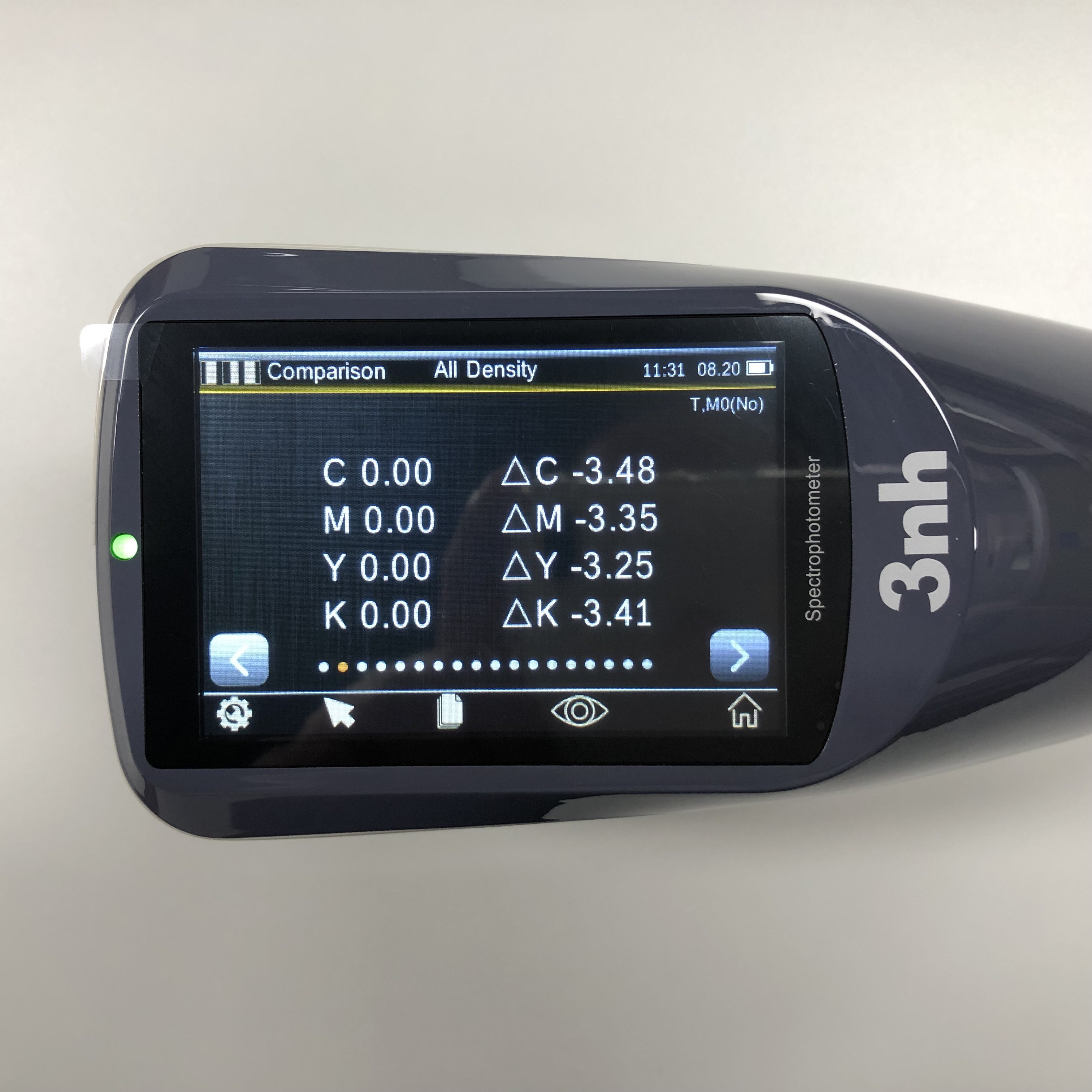

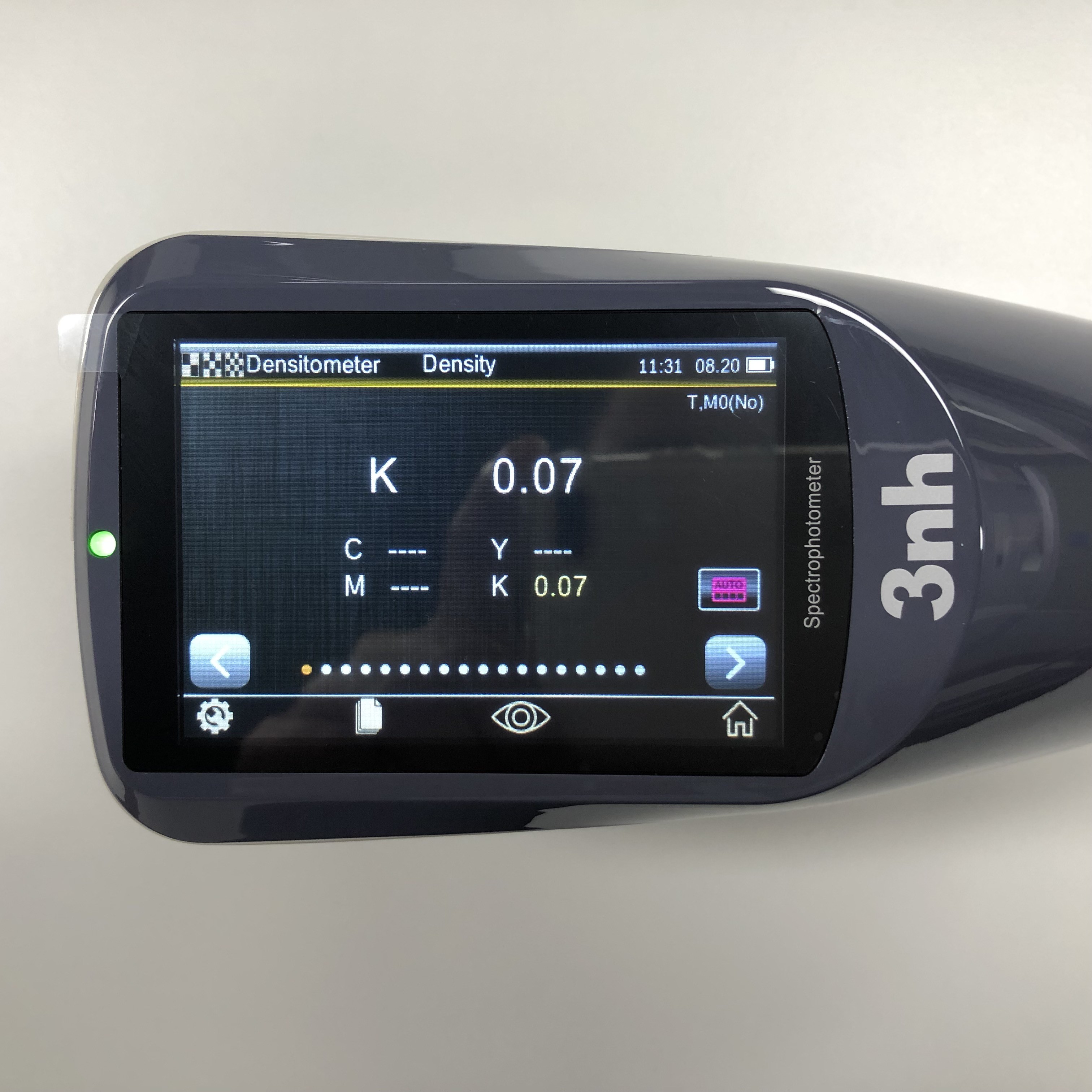

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.

3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.

3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.

3.4. UV light source, can measure fluorescent colors more accurately.






3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.

3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.









3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.

3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.

3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.









3.10. Multiple kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet different requirements for color measurement and color analysis.

3.11. Include multiple kinds of light source types, can be applied to most of the color measurement situations.












3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.

3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.

3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.






3.15. USB data port, implement data transmission more convenient and prompt.






4. Company Profile



YD5010 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998. We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.






GW6A9235 1231.jpg



5. Frequently Asked Questions
1. Can the YD5010 spectro-densitometer be equivalent to any model of world famous brands?
Answer: Yes, our YD5010 is equivalent to the X-rite eXact Standard Spectro-densitometer.


2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!



3. What's your main market?
Answer: We sell to the global market.



4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.



5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.



6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.



3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.

Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.

Product Features

1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Switchable apertures: Φ2/4/8/20mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.


Model YD5010 45/0 Spectrophotometer Densitometer
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15
Features Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm

Wavelength Pitch &

Half Bandwidth

10nm
Measurement Condition

Compliance with ISO 13655 measurement conditions;

M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)

Density Standards ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity,
Observer Angle 2°/10°
Illuminants A,C,D50,D55,D65,D75
Measurement Time About 1.5s
Repeatability

Density: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight about 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB
Data memory 10000pcs
Language Simplified Chinese, English, Traditional Chinese
Storage & Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover.Polarization filter box
Optional Accessory Micro Printer,Locating Plate
  Notes: The specifications are subject to change without notice.

Certifications
YS YD CE.pngYS YD rohs.png

Comparasion with Other brands



For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.



All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.



3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC


Frequently Asked Questions


1. Can the YD5010 spectrodensitometer be equivalent to any models of world famous brands?
Answer: Yes, our YD5010 is equivalent to the model of Xrite Exact standard spectrophotometer density meter.


2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!



3. What's your main market?
Answer: We sell to the global market.



4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.



5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.



6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

YD5050 & YD5010 spectrodensitometer

  Functionality YD5010 YD5050
Density Index CMYK,Spot Colors CMYK and Spot CMYK and Spot
Density State T,E,A,I T,E,A,I
Density Trend
Densitometry
CMY Balance
Dot Area
Dot Gain
Overprint
Printing Characteristics
Printing Contrast
Tone Errors and Gray Patch
Printing Plate
Chromaticity index L*a*b*,L*C*h°
dE*76,dE*94,dE*00,dECMC
A,C,D50,D55,D65,D75,F2,F7,F11,F12
XYZ,Yxy
Special Reflection Graph
Paper Indices
Opacity
de Trend
Metamerism
Absolute Color Strength
Relative Color Strength
Best Match
QC Function Paper QC
Best Match Table
Ink QC
TVI Table
Gray Balance QC
  G7,PSO,ISO,JapaColor
Custom Work Template
Color Library Pantone PMS+
PantoneLIVE
Custom color library
Security Security Settings
Multiple User Profiles
Other Scan Mode
Spectral Data Derivation
Pass or Failure
Averaging
Sample Storage
Standard
Interface USB
Bluetooth
Software







Comparasion with Other brands



For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.



All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.



3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC

Want to Know more details about this product
I am interested in Dot Area Percent Tone Increase Integrating Sphere Spectrophotometer CMYK Density YD5010 could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
