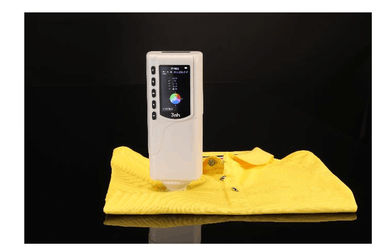

3nh Digital Printing Machine Textile Digital Color Meter NR110 With Small Measuring Aperture 4mm
3nh digital printing machine textile colorimeter NR110 with Small measuring aperture 4mm
NR110 Precision Colorimeter
Functional Features NR110 Precision Colorimeter Since 1998 from import to domestic 3nh NR110 precision colorimeter is an iconic milestone in color test industry. New Functions Double Locating: Illuminating locating and cross locating Doub
Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry.
Double Locating: Illuminating locating and cross locating
Double Measurement End Face: Large area measurement and small area measurement
New Integrating Sphere Design: More stable measurement
Equipped with Rechargeable High-Capacity Li-ion Battery
a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Locating: Illuminating locating and precise cross locating.
c. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
d. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
e. 4mm Measuring Aperture.
f. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
g. Configure CQCS3 software. Connect PC computer to realize more functions.
h. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
i. Hand-head structure: small and convenient; make the measurement easier.
j. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
k. Spending huge sums on high-end mold. Product consistency approaches 100%.
l. High cost performance: large output, good quality, cheap products.
Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)
||Silicon photoelectric diode
|Color Difference Formula
||ΔE*ab ΔL*a*b ΔE*C*h
|Light Source / Light Source Device
||D65 / LED blue light excitation
|Errors Between Each Equipment
||100pcs standards 20000pcs samples
Standard deviation within ΔE*ab 0.08,
Average ℉ 30 measurements ℉ standard white plate
||205*70*100 mm & 500g
||Rechargeable lithium-ion battery 3.7V at 3200mAh
||3 years, more than 1 million measurements
||8 hours--100% electricity
|Measurement Times Before Recharging
||3000 times in 8 hours
|Operating Temperature/Humidity Range
||-10~40℃, relative humidity 0~85% with no condensation
|Data Interface / Optional Accessory
USB /Miniature thermal printer, Powder Test Box
