PVC Plastic Masterbatch Color Difference Meter , NR20XE Paint Color Analyzer

PVC Plastic Masterbatch Color Difference Meter , NR20XE Paint Color Analyzer

Product Details:

Place of Origin: Shenzhen, China
Brand Name: 3nh
Certification: CE,RoHs,ISO,etc
Model Number: NR20XE

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 works days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Illuminating/Viewing Geometry: 45/0 Brand: 3nh
Measuring Aperture: 20mm Color Space: CIE-Lab, CIE XYZ, CIE-LabCH
Illuminant: D65 Locating: Illuminating Locating/Cross Locating
Dimension: 205×67×80 Mm OEM: YES
High Light:

colour difference meter

,

paint color analyzer

Product Description

PVC Plastic Masterbatch Color Difference Meter , NR20XE Paint Color Analyzer

Lab portable vegetable food fruit colorimeter PVC plastic masterbatch color analysis NR20XE

Product Introduction:

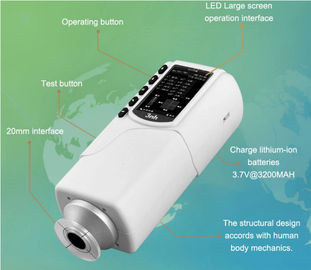

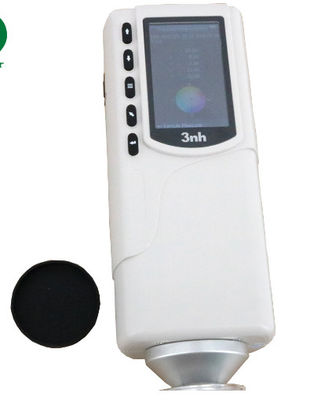

3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.


QC Department:


NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.


Applications:


Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.


Technical Specifications



Product model NR20XE
Measuring geometry 45 ° / 0 °
Measure the diameter 20 mm large diameter
Special function Especially suitable for measuring surface texture and wet products
Positioning way Light orientation and cross orientation
Detector sensor Silicon photodiode array
Color space CIEL* a*b*C*H* CIEL* a*b* CIE XYZ
Optional light source D65
The light source device LED blue light excitation
repetitive ≤0.08 E*ab to measure the average of 30 times of white standard plate
Difference between instruments 0.50 E * ab or less
storage 100 standard samples, 20,000 samples, 500g
The weight of the 500g
size 205x67x80mm
The power supply Rechargeable lithium-ion battery 3.7v@3200mah
Charging time About 8 hours -100% charge
Measured times after charging 3000 measurements in 8 hours
Lamp life More than 1.6 million measurements were made in 5 years
Operating temperature and humidity range -10~40C, 0-85% relative temperature (no condensation)
Storage temperature and humidity range -20~50C, 0-85% relative temperature (no condensation)
Data interface The USB interface
PC software CQCS3 high-end color quality management software
Printer (optional) Miniature thermal printer


Colorimeter Advantages


1. 20mm measuring aperture can test objects with surface stripe accurately.


2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.


3. Double Locating: Illuminating locating and cross locating.


4. Adopting new optical path and dynamic integration time can test more stable and accurate.


5. 45°/0° optical geometry structure, considering the effects of surface features.



6. Annular illumination design, suitable for polarizing material.


7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.


8. Configuring CQCS3 software -- connect PC computer to realize more functions.



FAQ:



A1 We accept trade assurance,western union ,Visa master card and tt. Trade assurance
can protect you, when you confirm the product then the money into my account.



Q2 Do your product have warranty?

A2 Yes,all our products enjoy one year warranty protect.



Q3 When do you send the products? And how do you send it ?

A3 For the sample or small order, we will send out the goods with 5 days,If have stock ,we will send immediately. We send them by ups,fedex,tnt or dhl.For big order,normal is 20 days will finish.



Q4 Are you trading company or factory?

A4 We are factory,all selling products we make them by ourself.
Price will direly to the bottom and guaranty the quality.



Q5 Do you accept OEM or revised logo,color,model,size?

A5 Yes,we accept OEM for the qualify buyer.We can make the products according to customer personal requirement.
