|Integrating Sphere Size:||Φ48mm||Standards:||CIE/ISO/ASTM/DIN|
|Color Space:||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB||Function:||Staining Fastness, Color Fastness|
|Light Source:||LED+UV Illumination||Software:||SQCX|
|Rate:||Spectral Reflectance||Wavelength Range:||400~700nm|
colour measurement equipment,
integrating sphere spectrophotometer

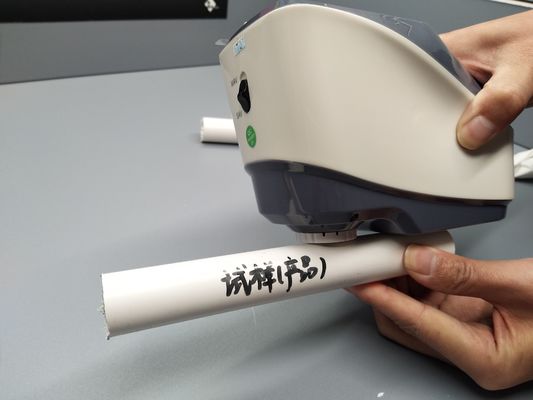

Color matching spectrophotometer test instrument D/8 400 700nm wavelength with PC software UV light source YS3060
Grating Spectrophotometer YS3060 is a new product launched as a flagship model in color measuring instruments by Shenzhen 3nh Technology Co., Ltd. YS3060 spectrophotometer can match with the similar models of the world famous brands no matter in functions or in precision, such as American Xrite brand models spectrophotometer Ci60, Ci62, Ci64, Ci64UV, and Japan Minolta models spectrophotometer CM-2300d, CM-2600d, CM-600d and CM-700d etc.
1. Spectrophotometer YS3060 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3060 features the precise measurement and the complete functions.
3. It is configured with two measuring apertures, 8mm and 4mm. The 4mm aperture is for the color measurement of small targets.
4. Configured with UV light source, YS3060 can be used to measure the color of the targets with fluorescent material.
5. The PC terminal software SQCX provides powerful data management functions.
6. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
7. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
8. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management.
9. A built-in camera to help to aim the targets to be measured.
|Optical Geometry||d/8° (di:/8°, de:8°)|
|Measuring Aperture||Φ8mm & Φ4mm|
|SCI/SCE||SCI & SCE (SPIN & SPEX)|
|Integrating Sphere Size||Φ48mm|
|UV Light Source||Yes|
|Light Source||D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7,
F8, F9, F10, F11, F12
|Light Source Device||Combined LED Lamp & UV Lamp|
|Detector||256 Image Element Double Array CMOS Image Sensor|
|Spectral Device||Concave Grating|
|Observer Angle||2° & 10°|
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1),
|Displayed Data||Spectrogram/Values, Chromaticity Values,
Color Difference Values/Graph, Pass/Fail Result, Color Offset
|Other Colorimetric Index||WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength,
|PC Terminal Software||SQCX|
|Data Storage Capacity||Standard: 1000 Pcs; Sample: 28000 Pcs.
(One Pcs data can include both SCI and SCE)
|Data Port||USB & Bluetooth|
|Locating Method||Camera Locating|
|Measuring Mode||Single Measurement & Average Measurement|
|Screen||3.5" LCD Touch Screen|
|Battery||Built-in Li-ion Battery. 5000 Measurements within 8 Hours.|
|Language||English & Chinese & Spanish|
|Working Environment||Temperature: 0~40℃; Humidity: 0~85% (No Condensation)|
|Storage Environment||Temperature: -20~50℃; Humidity: 0~85% (No Condensation)|
|Standard Accessory||White and Black Calibration Board, 4mm Aperture, Power Adapter,
USB Cable, Built-in Li-ion Battery, User Guide, PC Software, Dust Cap
|Optional Accessory||Micro-printer, Powder Test Box, Universal Test Component|
YS3060 spectrophotometer is color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the color of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Contact Person: Melorae Huang
Optical Geometry: 45/0(45 ring-shaped illumination, vertical viewing)
SCE/SCI: SCE & SCI
Other Colorimetric Index: WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,
