YS3060 Portable Color Spectrophotometer To Comapre Human Skin Color With Pigment

YS3060 Portable Color Spectrophotometer To Comapre Human Skin Color With Pigment
YS3060 Portable Color Spectrophotometer To Comapre Human Skin Color With Pigment YS3060 Portable Color Spectrophotometer To Comapre Human Skin Color With Pigment

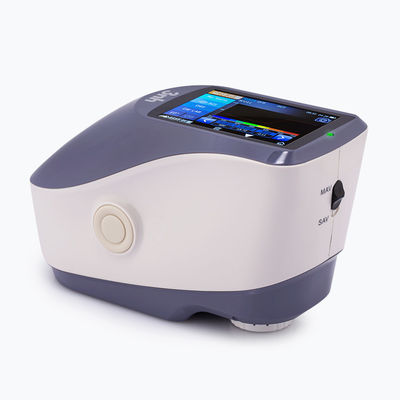

Large Image :  YS3060 Portable Color Spectrophotometer To Comapre Human Skin Color With Pigment

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHS, ISO9001
Model Number: YS3010

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Please send inquiry
Packaging Details: 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time: 2-5 Days
Payment Terms: T/T
Supply Ability: 500 Units per Month
Detailed Product Description
Optical Geometry: D/8° SCE/SCI: SCE & SCI
Other Colorimetric Index: WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Repeatibility: ΔE*≤0.03
Color Space: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Measuring Aperture: Φ8mm
High Light:

colour measurement equipment

,

integrating sphere spectrophotometer

Skin color measurement spectrophotometer YS3060 to comapre human skin color with a pigment for tattoo



Grating Spectrophotometer YS3060 is a new product launched as a flagship model in color measuring instruments by Shenzhen 3nh Technology Co., Ltd. It can match with the similar models of the world famous brands no matter in functions or in precision, such as Ci60, Ci62, Ci64UV, CM-2300d, CM-2600d, CM-600d and CM-700d.



Technical Specification





Parameters Grating Spectrophotometer YS3060
Optical Geometry d/8°
Measuring Aperture Φ8mm & Φ4mm
SCI/SCE SCI & SCE or SPIN & SPEX
Integrating Sphere Size Φ48mm
UV Light Source Yes
Light Source D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Light Source Device Combined LED Lamp & UV Lamp
Detector 256 Image Element Double Array CMOS Image Sensor
Spectral Device Concave Grating
Observer Angle 2° & 10°
Repeatability ΔE*≤0.03
Inter-instrument Error ΔE*≤0.15
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Displayed Data

Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph,

Pass/Fail Result, Color Offset

Other Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength,
Opacity
PC Terminal Software SQCX
Data Storage Capacity

Standard: 1000 Pcs; Sample: 28000 Pcs.

(One PCS can include both SCI and SCE)

Data Port USB & Bluetooth
Locating Method Camera Locating
Measurement Mode Single Measurement & Average Measurement
Screen 3.5" LCD Touch Screen
Battery Built-in Li-ion Battery. 5000 Measurements within 8 Hours.
Size 184×77×105mm
Weight 600g
Language English & Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory

White and Black Calibration Board, 4mm Aperture, Power Adapter, USB Cable,

Built-in Li-ion Battery, User Guide, PC Software, Dust Cap

Optional Accessory Micro-printer, Powder Test Box



SPECIFICATIONS FOR YS3060 & YS3020 & YS3010 Spectrophotometer
Model Items
YS3060
YS3020
YS3010
Optical Geometry
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size
48mm
Light Source
Combined LED Light, UV Light
Combined LED Light
Spectrophotometric Mode
Concave Grating
Sensor
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400-700nm
Wavelength Interval
10nm
Semiband Width
10nm
Measured Reflectance Range
10nm
Measured Reflectance Range
0-200%
Measuring Aperture
MAV : Φ8mm/Φ10mm

SAV : Φ4mm/Φ5mm
Customized Aperture: 8mm/4mm/1×3mm
Single Aperture: MAV : Φ8mm/Φ10mm
Specular Component
SCI&SCE
Color Space
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle
2°/10°
Illuminant
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
D65, A, C, D50, D55, D75, F2, F7, F11
D65, A, C, D50
Display Data
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time
2.6s
Repeatability
MAV/SCI: ΔE*≤0.03
MAV/SCI: ΔE*≤0.05
MAV/SCI: ΔE*≤0.06
Inter-instrument Error
MAV/SCI: ΔE*≤0.15
MAV/SCI: ΔE*≤0.2
MAV/SCI: ΔE*≤0.4
Measurement Mode
Single Measurement, Average Measurement
Locating Method
Camera View Finder Locating
Battery
Li-ion battery. 5000 measurements within 8 hours
Dimension
L*W*H=184*77*105mm
Weight
600g
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port
USB, Bluetooth 4.0
USB
Data Storage
Standard 2000 Pcs, Sample 20000 Pcs
Language
English, Chinese
Operating Environment
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment
-20~50℃, 0~85%RH (no condensing)
Standard Accessory
Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory
Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.



Color Space

CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral



CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Printing paper spectrophotometer NS800 3nh chroma meter with 45/0







Brief Introduction

1. Spectrophotometer YS3010 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3010 features the precise measurement and the complete functions.
3. It has one 8mm measuring apertures which is the aperture widest applied.
4. The PC terminal software SQCX provides powerful data management functions.
5. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
6. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
7. YS3010 can be connected to a computer via USB cable to do data management.
8. A built-in camera to help to aim the targets to be measured.



Application Introduction

YS3010 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color of liquids like vinegar or wine, powders like flour and paste like ketchup.



Frequently Asked Questions

1. Which models are the equivalent models to YS3010?
Answer: KONICA MINOLTA CM-2300d and X-rite Ci64 are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
