Lab / Industry Color Difference Meter 3nh Analyzer Silicon Photodiode Array Sensor

Lab / Industry Color Difference Meter 3nh Analyzer Silicon Photodiode Array Sensor
Lab / Industry Color Difference Meter 3nh Analyzer Silicon Photodiode Array Sensor Lab / Industry Color Difference Meter 3nh Analyzer Silicon Photodiode Array Sensor

Large Image :  Lab / Industry Color Difference Meter 3nh Analyzer Silicon Photodiode Array Sensor

Product Details:

Place of Origin: Shenzhen, China
Brand Name: 3nh
Certification: CE,RoHs,ISO,etc
Model Number: NR60CP

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 works days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Model: NR60CP Sensor: Silicon Photodiode Array
Measuring Aperture: 8mm Flat Aperture,4mm Tip Aperture Color Space: CIE LAB,XYZ,LCH,CIE RGB, CIELUV
Observer: CIE 10-degree Dimension: 205*67*80mm
High Light:

colour difference meter

,

paint color analyzer

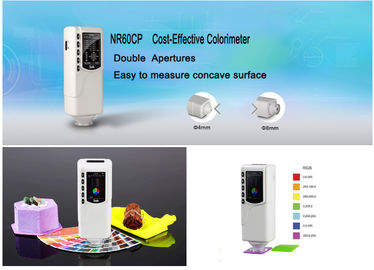

Cost-effective Cheap 3nh Portable Colorimeter Color Difference Analyzer in Lab & Industry



R60CP cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.





Product Features
1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, more stable measurement;
8. Measurement data can pass national metrology authentication.



Application Industry
NR60CP spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.





Specifications

Illuminating/Viewing Geometry 8°/ d
Light Source LED Light
Sensor silicon photodiode array
Measuring aperture Φ8mmflat aperture; Φ4mmtip aperture
Color Space CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference Formula ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromaticity Data WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1), FMCI I
Observer CI E 10°
Illuminant D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measuring Time 0. 4s
Repeatability ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument within Delta E*ab 0.2
Dimension 205*67*80mm
Weight 500g
Battery rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch(16: 9)
Interface USB/ RS- 232
Storage 100 Standards, 20000 Samples
Operating Temperature 0~40℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
PC software CQCS3 software
Optional accessory miniature thermal printer, powder test box







Related Knowledge about Spectrophotometer:



Color Space

CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
