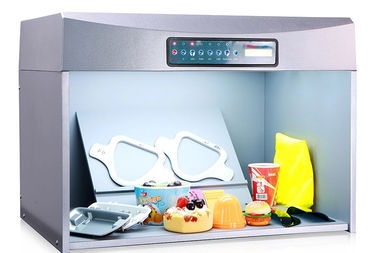

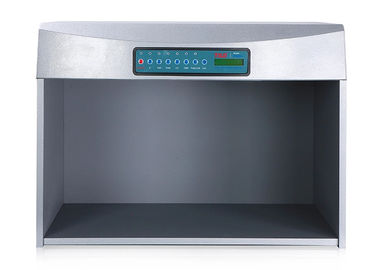

Color Controller Laboratory Light Box Tilo P60 Plus 6 Light Cabinet For Textile Led Light Booth
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Light Box Color Assessment Cabinet | Size | 695x552x502mm |
---|---|---|---|
Light Sources | D65,TL84,CWF,F,UV,TL83 | Color | Grey |
Warranty | 12 Months Except Comsumable | Weight | 19.5KG |
High Light | colour matching cabinet,pantone color viewing light booth |
Color controller tilo p60 plus 6 light box for textile led Light Booth for Color Matching
P60+ can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Application :
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
P60+ Color light box Features :
Ø TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized
About Light Sources :
Light source | Color viewing booths Application | Color temperature(k) | Power(W) |
D65 | International Standards Artificial daylight | 6500 | 18 |
TL84 | Applied to stores in Europe, Japan & China | 4000 | 18 |
CWF | (Cool white fluorescent) American standard | 4150 | 18 |
F/A | "Sun-setting light yellow" incandescant light source | 2700 | 40 |
UV | Viewing under ultrioviolet to detect and evaluate optical brighteners or fluorescent pigments. | wavelength:365nm | 20 |
U30 | Warm white fluorescent American standard | 3000 | 18 |
Order Model | Configured Light Sources | Weight | Dimension(mm) |
P60+ Color Light Box | D65,TL84,F,UV,CWF, TL83 | 30kg | 695x552x502 |
About Light Sources:
Light Source | Color Viewing Booths Application | Color Temperature(K) | Power(W) |
D65 | International Standard Artificial Daylight | 6500 | 18 |
TL84 | Applied to stores in Europe,Japan and China | 4000 | 18 |
CWF | Cool White Fluorescent American Standard | 4150 | 18 |
F/A | "Sun-set Light Yellow" Incandescent Light Source | 2700 | 40 |
UV | Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. | Wavelength: 365nm | 20 |
U30 | Warm White Fluorescent, American Standard | 3000 | 18 |
4. Company Profile
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
