|Measuring Angle:||60°||Measuring Area(mm):||60°:9x15|
|Measuring Range(GU):||60°: 0~300||Division Value:||0.1GU|
|Tolerance:||±1.5, ±1.5%||Data Port:||USB|
paint gloss meter,
60 degree gloss meter

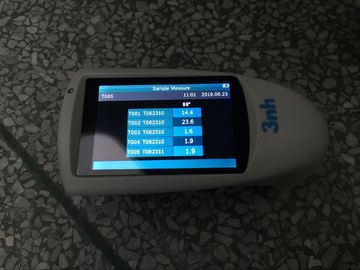

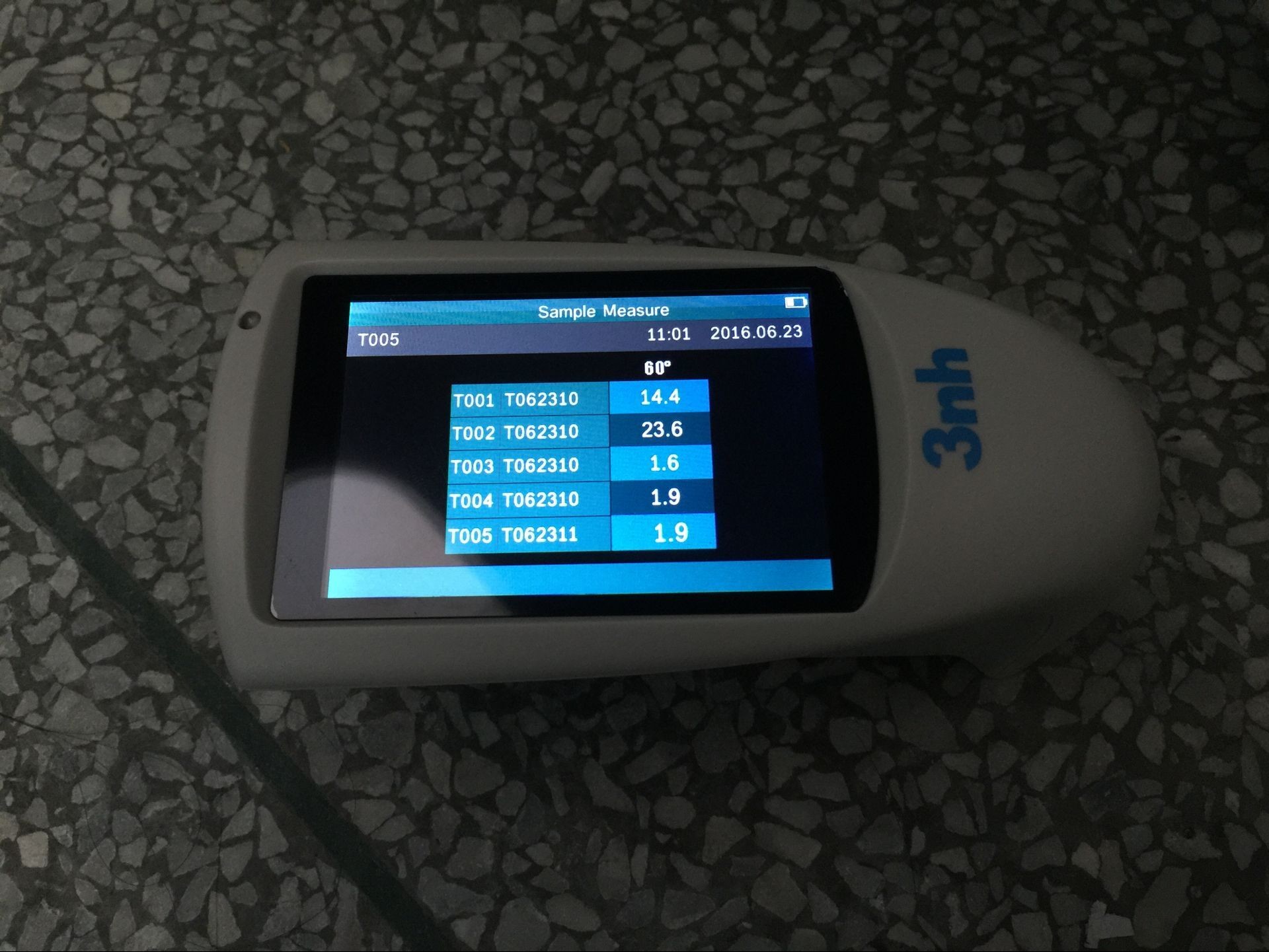

HG60 Economic Gloss Meter
HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
GQC6 Software Introduction:
GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.
|HG60 Economic Gloss Meter|
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
|Measuring Area (mm)||9x15|
|0-10GU 10-100GU 100-300GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
|Measurement Standard||Conform with JJG696 first class glossmeter working requirement|
|Chromaticity Corresponding||Corresponding with CIE 1931(2°) under CIE C light source|
|Errors||±1.5 , ± 1.5%|
|Dimension||L*W*H : 160mm*75mm*90mm|
|Battery||3200mAh Li-ion Battery , >10000 times(within 8 hours)|
|Display||TFT 3.5 inch|
|Storage||Basic mode: 1000|
|Software||GQC6 Quality Control Software with QC report printing functions and more extended functions.|
|Humidity||<85% relative humidity, no condensation|

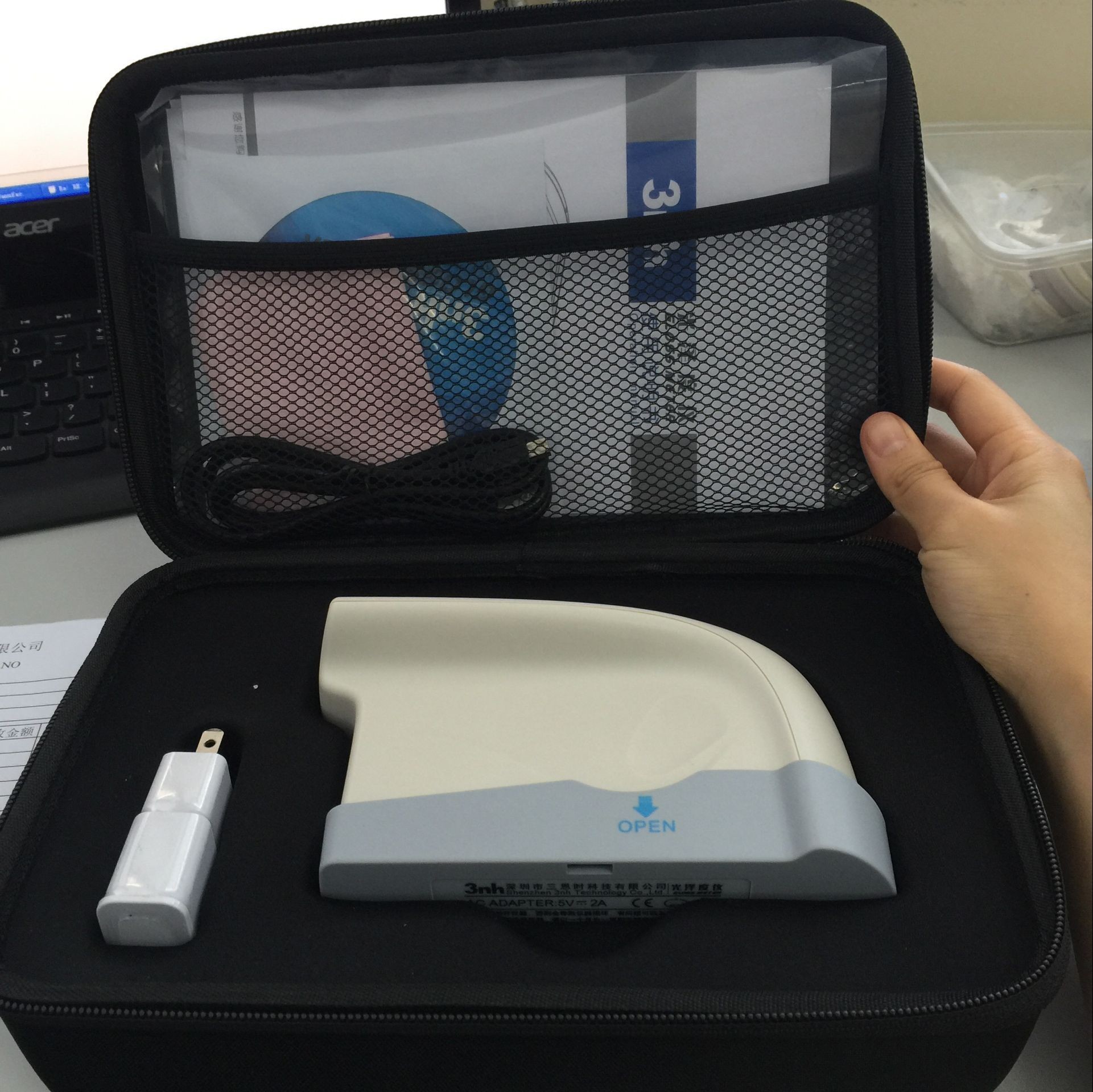

|Standard Accessories||Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate|
|Optional Accessories||Miniature Printer|
|Note||The specifications are subject to change without notice.|
Keywords: gloss meter, glossmeter, glossness meter
3nh gloss meter glossness passed CE, FCC, ROHS, certifications.
All our gloss meter glossness products have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
