0-2000GU Marble Tile Floor Triangle Gloss Meter 3nh YG268 Easy To Read Data

  • 0-2000GU Marble Tile Floor Triangle Gloss Meter 3nh YG268 Easy To Read Data
  • 0-2000GU Marble Tile Floor Triangle Gloss Meter 3nh YG268 Easy To Read Data
Place of Origin Shenzhen,China
Brand Name 3nh
Certification CE,RoHs,ISO,ASTM etc.
Model Number YG268
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YG268 Measuring Angle 20 60 85
Division Value 0.1GU Measuring Range 0-2000GU
Weight 300g Measuring Time 0.5s
Language Chinese And English Software GQC6
High Light

paint gloss meter

,

60 degree gloss meter
Leave a Message
Product Description

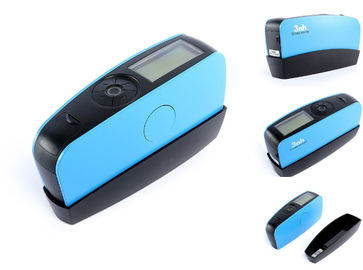

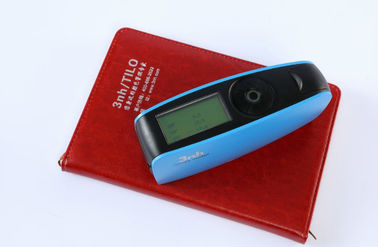

Shenzhen 3nh YG268 Marble Tile Floor Triangle Gloss Meter 0-2000GU



Brief Introduction:



YG268 gloss meter features with 20° 60° 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. YG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



Features:



  • 20° 60° 85° angle for semi gloss;
  • with auto-calibration function;
  • elegant design combined with aesthetics and ergonomics;
  • large storage to save over 35000 data;
  • Meet the first grade requirements of JJG696;
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.
  • can realize auto power on & off automatically within 30s-120s



Specifications:



YG268 Multi-angle Precise Smart Gloss Meter
Model
YG268 gloss meter
Measuring Angle
20°/60°/85°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area(mm)
20°: 9x10 60°: 9x15 85°: 5x38
Measuring Range
20°:0~2000GU 60°:0~1000GU 85°:0~160GU
Division Value
0.1GU
Measurement Range Repeatability
0-100GU 100-2000GU
± 0.2GU ± 0.2%GU
Measurement Standard
Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response
Corresponding with CIE 1931(2°) under CIE C Light Source


Measuring Time
0.1s
Display Size
2.3"


Data Port
USB & Bluetooth
Language
Chinese/English
Battery
1pc of dry cell battery NO.5
Dimension
160*52*84mm
Weight
350g
Measuring Mode&Storage
Basic and Continuous Mode: 15000; Statistical Mode: 10000; QC Mode: 10000
Software
GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions.
Operation Temperature
0~40℃(32~104℉)
Storage Temperature
-20~50℃(-4~122℉)
Humidity
<85% Relative Humidity, No Condensation
Standard Accessories
Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories
Miniature Printer





GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.



Application:



YG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.0-2000GU Marble Tile Floor Triangle Gloss Meter 3nh YG268 Easy To Read Data 00-2000GU Marble Tile Floor Triangle Gloss Meter 3nh YG268 Easy To Read Data 1
