20/60/85 Degree Digital Gloss Meter , YG268 Blutooth Gloss Meter For Marble

Place of Origin Shenzhen,China
Brand Name 3nh
Certification CE,RoHs,ISO,ASTM etc.
Model Number YG268
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YG268 Measuring Angle 20 60 85
Division Value 0.1GU Measuring Range 0-2000GU
Weight 300g Measuring Time 0.5s
Language Chinese And English Software GQC6
High Light

paint gloss meter

,

60 degree gloss meter

Leave a Message
Product Description

YG268 Digital Tri-Angle Precise Glossmeter 20/60/85 Gloss Meter



YG268 Tri-angle Gloss Meter is manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Model YG268 Tri-angle Gloss Meter
Measuring Angle 20° 60°85°
Measuring Area 20°: 0-2000GU
60°: 0-1000GU
85°: 0-160GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB & Bluetooth 2.1 version
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range < 85% RH, without condensation

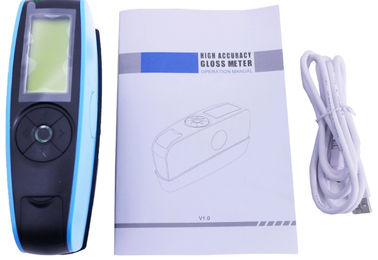

Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference



GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.



Application:



YG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
