High Temperature Illumination Color Assessment Cabinet To Replace Spectralight QC

High Temperature Illumination Color Assessment Cabinet To Replace Spectralight QC
High Temperature Illumination Color Assessment Cabinet To Replace Spectralight QC

Large Image :  High Temperature Illumination Color Assessment Cabinet To Replace Spectralight QC

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh-TILO
Certification: CE, RoHS
Model Number: T90-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: Safe Package, MDF Wood Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100 Units per Month
Detailed Product Description
Material: Steel Illuminants: 7 Kinds In Total, Customizable
Inner Space: 895*599*652mm Name: Color Matching Light Box
Certification: CE, RoHS Warranty: 1 Year
High Light:

color checking light box

,

color matching booth

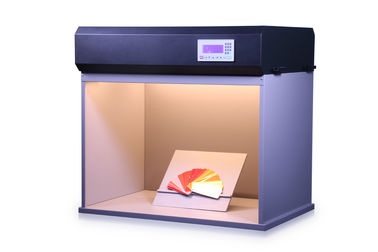

T90-7 high temperature and illumination color light box color assessment cabinet to replace SpectraLight QC from X-RITE



Certificates: ISO9001:2008; CE; FCC; ROHS; TUV.



T90-7 color light box is 2016 new product, and it adopts 7 light source with 4 sets of LED light (Life up to 25000 times) and 3 sets of fluorescent light source. The unique design combinate of the characteristics of Verivide and X-rite light box. The multi light source turn-on makes easy to check the metamerism of samples. The sample is one color under this light, but it will display another color when you switch another light source. With UV light, close to natural daylight, it can be used independently or together with other light sources, more effective to check the dye sample if they have fluorescent whitening agent. The adjustable illumination offers different light environment for samples, easier to check color difference.



Illuminants Details



Item Specification
Light source D65, A, D50, UV, U30, TL84, U35
Weight 60kg
Size (W*D*H) 1008*716*898mm



Model Quantity Specs Parameter CRI Lifespan
LED light 1 3nh TruD65 2 pcs 15W, 6500±200K Ra95 20000-50000 hours & 25000 on-off times
LED light 2 3nh TruA 2 pcs 15W, 2850±200K Ra96
LED light 3 3nh TruD50 2 pcs 15W, 5000±200K Ra95
LED light 4 3nh TruUV 2 pcs 15W, Wavelength 360-390nm /
Philips F30T12/30U/RS 2 pcs 30W, 3500±200K Ra80 2000-3000 hours & 10000 on-off times
Philips TL-D30S/840 2 pcs 30W, 4000±200K Ra85
GE F25T8 SPX35 ECO 2 pcs 25W, 3500±200K

Ra85





Illuminants Quantity
D65 2pcs
D50 2pcs
A 2pcs
UV 2pcs
U30 2pcs
TL84 2pcs
U35 2pcs
Horizontal 2pcs



Note: T90-7 includes 7 kinds of illuminants in total, you can choose any 7 kinds of illuminants. It's customizable.



Introduction: This light cabinet not only can be used for color assessment, but also can be used to do camera imaging tests. It's a similar product to X-rite Spectral Light QC.





Show Case

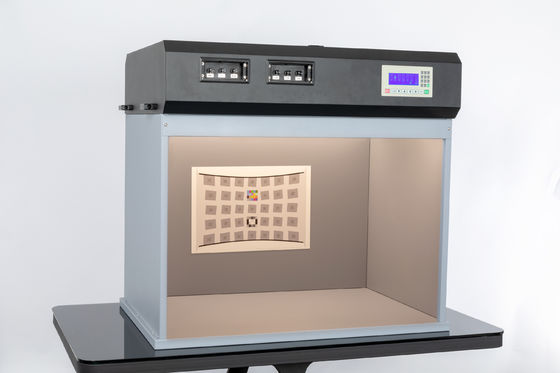

T90-7 high temperature and illumination color light box color assessment cabinet to replace SpectraLight QC from X-RITE



Frequently Asked Questions

1. Which models are the equivalent models to T90-7?
Answer: X-rite Spectral Light QC is the equivalent product to 3nh T90-7.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
