Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade

Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade
Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade

Large Image :  Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: YG60

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Model: YG60 Measuring Angle: 20
Division Value: 0.1GU Measuring Range: 0-2000GU
Accurate: Confirm With JJG696 First Grade Weight: 300g
Measuring Time: 0.5s Display: 2.3 Inch Black And White Screen
Language: Chinese And English Storage: 35000
High Light:

paint gloss meter

,

60 degree gloss meter

YG60 Cheap Gloss Meter for Granite With Auto-calibrationand Glossmeter



Brief Introduction:

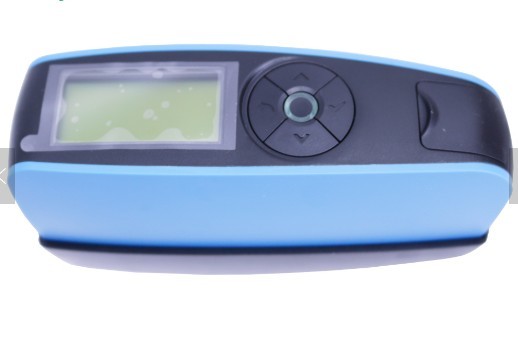

YG60 gloss meter features with 60°  angle, manufactured according to ISO2813 and GB/T 9754. YG series gloss meter is independently developed by Shenzhen ThreeNH Technology Co.,Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.





Features:



  • 60° angle for semi gloss;
  • with auto-calibration function;
  • elegant design combined with aesthetics and ergonomics;
  • large storage to save over 1500 datas;
  • Meet the first grade requirements of JJG696;
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.
  • can realize auto power on & off automatically within 30s-120s



Application:



YG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



Specifications:

Model YG268 Tri-angle YG60 60° Accurate YG60°S Economic
Measuring Angle 20°/60°/85° 60° 60°
Measuring Area(mm) 20°: 9*10
60°: 9*15
85°: 5*38
60°: 9*15 60°: 9*15
Measuring Range 20°: 0~2000 GU
60°: 0~1000 GU
85°: 0~160 GU
60°: 0~1000 GU 60°: 0~200GU
Division Value 0.1 GU 0.1 GU 1 GU
Measuring Time 0.5S 0.5S 0.5S
Repeatalibity 0~100 GU: ±0.2 GU
100~2000 GU: ±0.2 GU
0~100 GU: ±0.2 GU
100~1000 GU: ±0.2 GU
0~100 GU: ±0.5 GU
100~200 GU: ±0.5 GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time within 30s~120s 30s
Long-time Calibration Automatically check and made the calibration
Language Chinese and English
Storage 35000
Basic mode &Statistic mode : 1500
Continuous mode : 10000
QC mode: 10000
/
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB & Bluetooth 2.1 version USB USB
PC Software GQC6 QC software can printing testing report and with more extended functions /
OperationTemperature 0-40℃(32-104° F)
Storage Temperature -20-50℃(-4-122° F)
Humidity < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software User manual,
Calibration plate
Optional Accessories Miniature printer



GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.

Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade 0Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade 1Granite Gloss Measurement Instruments Auto Calibrationand Confirm With JJG696 First Grade 2
