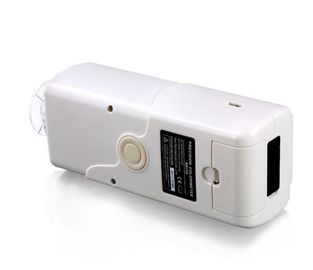

4mm Accuracy Handheld Color Meter , Paint Plastic Chroma Meter Double Locating 3NH NR110

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE,RoHs,ISO,etc
Model Number NR110
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 works days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NR110 Light Source D65
Measuring Aperture 4mm Color Space CIE L*a*b*c*h,CIEL*a*b, CIEXYZ
Locating Illuminance And Cross Locating Storage 100pcs Standards 20000pcs Samples
Packing Dimension 450*230*370 Mm & 2.5KG Charge Time 8 Hours--100% Electricity
Power Source Rechargeable Lithium-ion Battery 3.7V@3200mAh
High Light

portable spectrophotometer colorimeter

,

digital color meter

Leave a Message
Product Description

Factory Direct 3NH NR110 4mm Accuracy Paint Plastic Chroma Meter

New Functions:

Double Locating: Illuminating locating and cross locating
Double Measurement End Face: Large area measurement and small area measurement
New Integrating Sphere Design: More stable measurement
Equipped with Rechargeable High-Capacity Li-ion Battery

Product Advantages:

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Locating: Illuminating locating and precise cross locating.
c. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
d. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
e. 4mm Measuring Aperture.
f. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
g. Configure CQCS3 software. Connect PC computer to realize more functions.
h. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
i. Hand-head structure: small and convenient; make the measurement easier.
j. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
k. Spending huge sums on high-end mold. Product consistency approaches 100%.
l. High cost performance: large output, good quality, cheap products.



Application:


Suitable for many occasions of color detection and control, is the service factory, chemical plant, printing plant, automobile factory, metal processing plant, mold factory, coating factory and other production in the color management of the best choice.4mm Accuracy Handheld Color Meter , Paint Plastic Chroma Meter Double Locating 3NH NR110 0



4mm Accuracy Handheld Color Meter , Paint Plastic Chroma Meter Double Locating 3NH NR110 1

Details:

Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ4mm
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Measurement End Face Large stable end-face and small concave-convex end-face
Color Space CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula △E*ab △L*a*b* △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Language English/Chinese
Weight 450g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional)

Miniature thermal printer





4mm Accuracy Handheld Color Meter , Paint Plastic Chroma Meter Double Locating 3NH NR110 2



Package:

4mm Accuracy Handheld Color Meter , Paint Plastic Chroma Meter Double Locating 3NH NR110 3
