CIE Lab Color Difference Meter Quality Control Lab Equipment NR20XE 20mm Aperture Precision

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE,RoHs,ISO,etc
Model Number NR20XE
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 works days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Illuminating/Viewing Geometry 45/0 Brand 3nh
Measuring Aperture 20mm Color Space CIE-Lab, CIE XYZ, CIE-LabCH
Illuminant D65 Locating Illuminating Locating/Cross Locating
Dimension 205×67×80 Mm OEM YES
High Light

colour difference meter

,

paint color analyzer

Leave a Message
Product Description

NR20XE 20mm aperture precision Colorimeter CIE Lab colorimeter color quality control lab equipment

When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.



NR20XE Precision Colorimeter/precise CIE Lab colorimeter/Color quality control lab equipment

Product Introduction

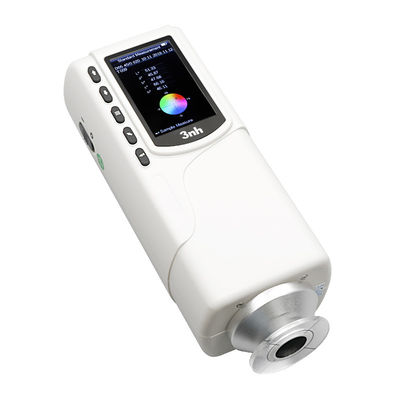

3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.



QC Department


NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.



Applications


Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.

Specification:

3nh NR20XE Precision Colorimeter
Illuminating/Viewing Geometry 45°/0°
Measuring Aperture Φ20mm
Special Function Especially suitable for testing surface stripe and wet products
Locating Illumination Locating/Cross Locating
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Color Space CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
Color Difference Formula E*ab; L*a*b*; E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each
Equipment
≤0.50 E*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Weight 500g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time First charging time is 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer
CIE Lab Color Difference Meter Quality Control Lab Equipment NR20XE 20mm Aperture Precision 0CIE Lab Color Difference Meter Quality Control Lab Equipment NR20XE 20mm Aperture Precision 1

CIE Lab Color Difference Meter Quality Control Lab Equipment NR20XE 20mm Aperture Precision 2
