Small Aperture Digital Gloss Meter , Gloss Measurement Instruments Single Angle 60 Degree

Small Aperture Digital Gloss Meter , Gloss Measurement Instruments Single Angle 60 Degree

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: NHG60M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: NHG60M Measuring Angle: 60
Measuring Area: 1.5*2mm Dimesion: 160*75*90mm(L*W*H)
Interface: USD-RS-232 Software: GQC6 QCsoftware
Divation: ±1.5,±1.5% OEM: Yes
High Light:

paint gloss meter

,

60 degree gloss meter

Product Description

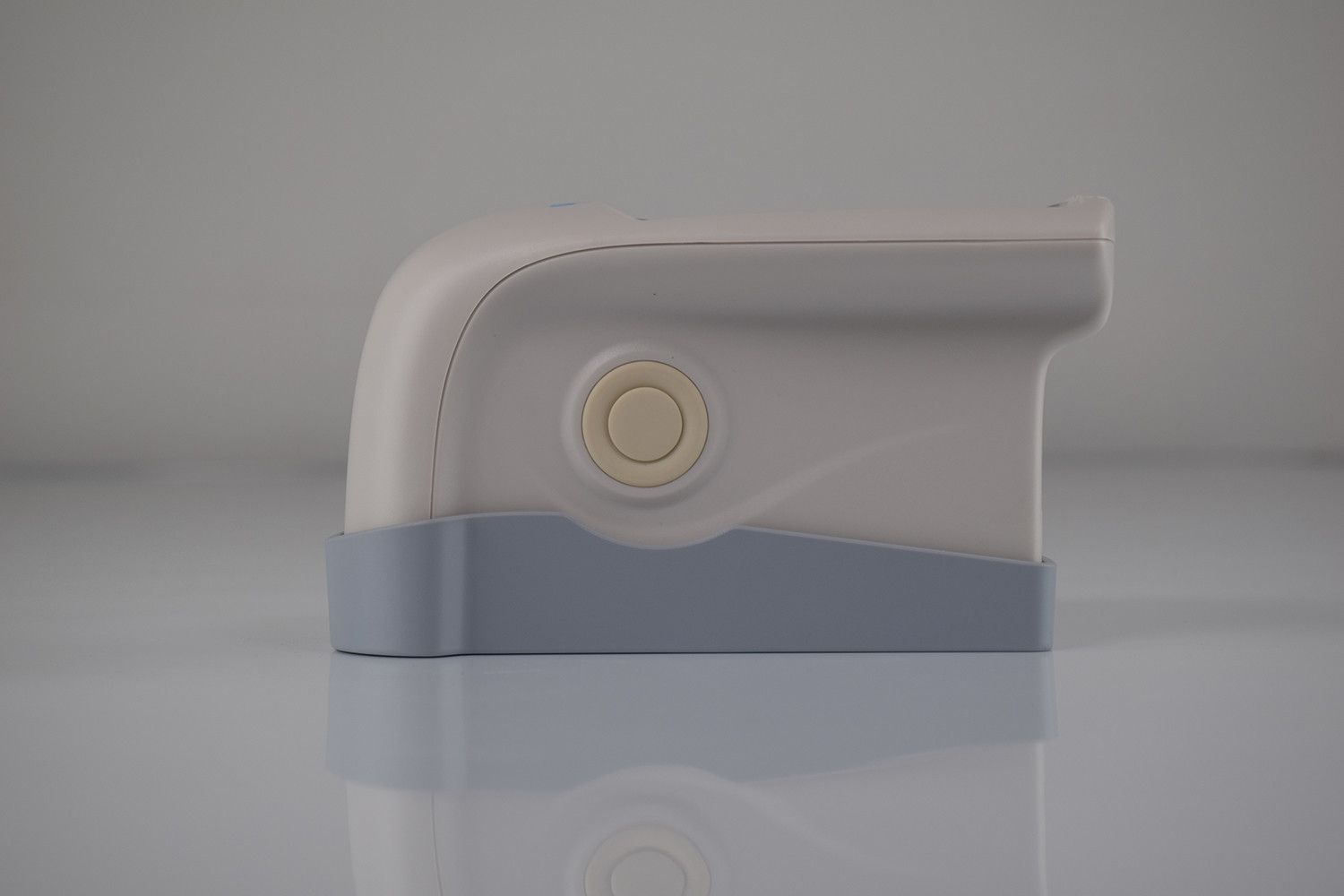

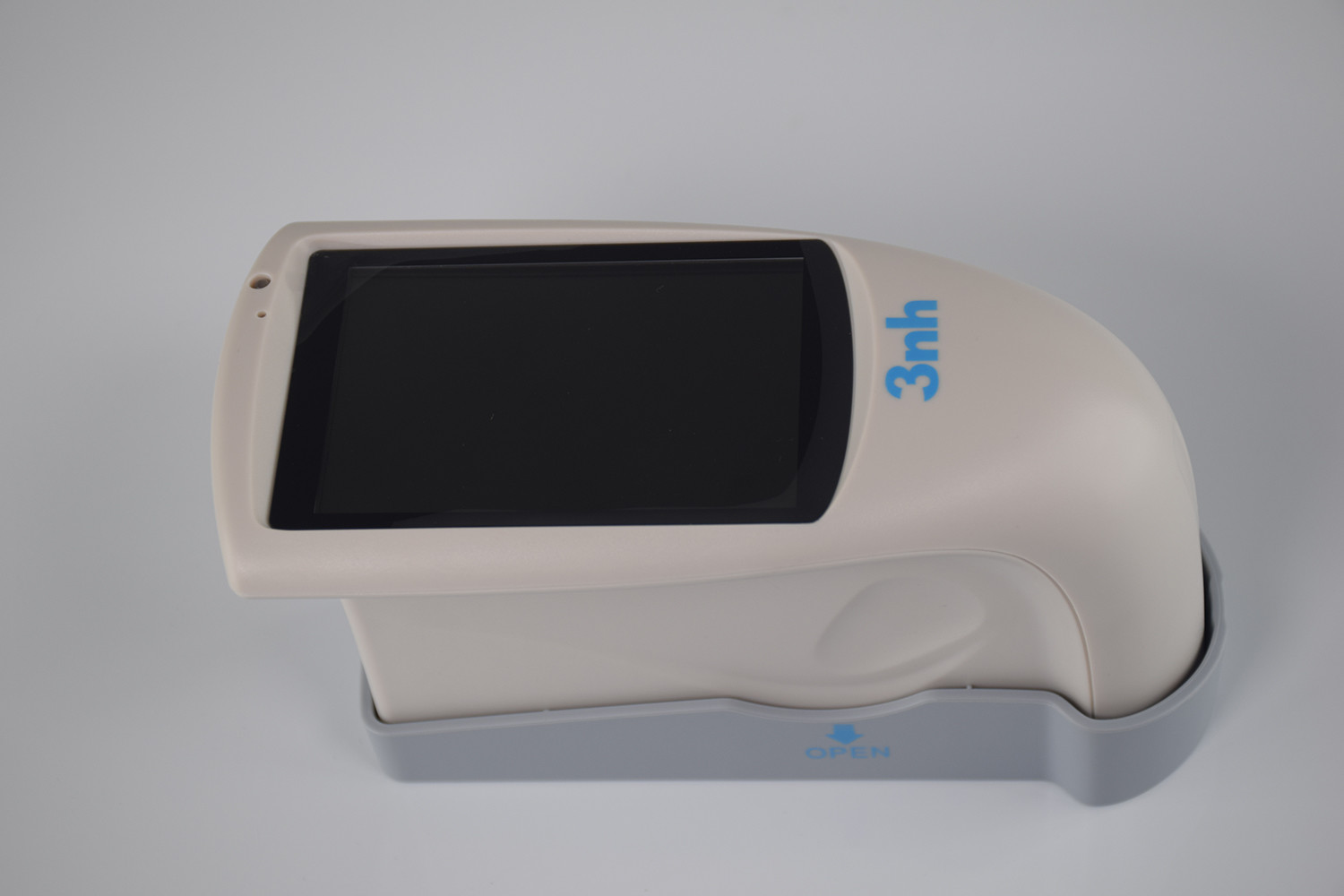

Small Aperture Digital Gloss Meter , Gloss Measurement Instruments Single Angle 60 Degree

Product Description

1.5*2mm Small Aperture Single Angle 60 Degree Gloss Meter Gloss Measurement Instruments 1000gu 3nh NHG60M

Introduction:

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



Pictures:

NHG268 (32)

NHG268 (34)


NHG268 (29)



NHG268 (36)



Features:



1. One button for all angles measurement at the same location

2. Display 5 sets of measurement data, good for comparison

3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

4. Continuous mode to check uniformity over large areas

5. Connect to PC, more extend functions

6. Input gloss value manually

7. Large touch screen operation, easy to use

8. Beauty appearance, good man-machine communication interface

9. Powerful functions to meet many different requirements





Specification:





NHG60 60° Precise Gloss Meter

Model NHG60
Measuring Angle 60°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area(mm) 9x15
Measuring Range 0~1000GU
Division Value 0.1GU

Measurement Range Repeatability

Reproducibility

0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±1.2, ±1.2%
Measuring Time 0.1s
Display Size TFT 3.5"
Touch-Screen Yes, Capacitive Touch Screen
Data Port USB & RS232
Language Chinese/English
Battery 3200mAh Li-ion Battery , >10000 times(within 8 hours)
Dimension 160*75*90mm
Weight 350g
Measuring Mode&Storage Basic Mode: 1000; Statistical Mode: 5000; Continuous Mode: 5000
Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions.
Operation Temperature 0~40℃(32~104℉)
Storage Temperature -20~50℃(-4~122℉)
Humidity <85% Relative Humidity, No Condensation
Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Miniature Printer
Application

NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



applicatoin



Company info:



Shenzhen Threenh Technology Co., Ltd. was established in 1998. It is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.

history 1.png

history 2.png

history 3.png










Certificates:

ISO9001, CE, FCC, ROHS, TUV







Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

Packaging & Shipping

Package: Alumnium alloy metal box, carton package.

Payment: T/T, Western Union, Paypal

Lead Time:1-3 workdays

Shipping: DHL, Fedex, UPS, EMS,TNT, etc
