Professional Resolution Test Chart Two 9 Graduated Counter Current Gray Scales

  • Professional Resolution Test Chart Two 9 Graduated Counter Current Gray Scales
Place of Origin Shenzhen, China
Brand Name SineImage
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number COLOR CAMERA GRAY SCALE TEST CHART
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time within 3-5 working days after payment confirmed
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SineImage Usage Adjustment Of Camera Flare Corrections
OEM Yes Light Source Can Be Equiped With Light Box
Basics Value BaO4S= 0 Gamma 0.45
High Light

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

SineImage Cheap Professional Two 9-graduated Counter Current Gray Scales COLOR CAMERA GRAY SCALE TEST CHART

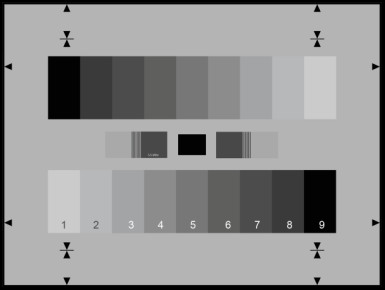

Two 9-graduated counter current gray scales are arranged on a gray background (D ≈ 0.75), the gray scales being graduated logarithmically (gamma = 0.45). The output of an optimally gamma-corrected camera yields two 9-graduated counter current linear step signals. The contrast range of the gray scales is 50:1.



The values of the 9-graduated gray scale are as follows:



Step Density Remission in % Output voltage in %
1 0.22 60 100
2 0.32 48 88.75
3 0.44 36 77.5
4 0.57 26 66.25
5 0.73 19 55
6 0.91 12 43.75
7 1.13 07 32.5
8 1.43 04 21.25
9 1.85 01.4 10





The density values are based on a density of BaO4S= 0.



The test chart incorporates a super black cavity for the accurate adjustment of camera flare corrections and setting of black level. On both sides of the super black hole 4.5 and 5.5MHz bars with a contrast ratio of 7:1 are located. Above and below the gray scales there are additional markings for the 16:9 format.
