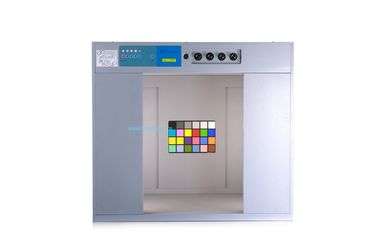

Small TILO Camera Viewer Color Check Box Chart Testing Environment Assessment Cabinet

Place of Origin Shenzhen China
Brand Name 3nh-TILO
Certification CE, RoHS
Model Number VC(3)
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details Safe Package, MDF Wood Carton
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material MDF Illuminants Four Light Sources D65, A, TL84, CWF
Illumination Range 750 To 3200 Lux Name Camera Test Light Source Box
Type Eye Vision Test Chart Brightness 250 Cd/m2
High Light

camera resolution chart

,

camera lens test chart

Leave a Message
Product Description

TILO Standard Horizontal MDF Material Camera Viewing Color Check Light D65 TL84 A Source Box



About US:
Shenzhen 3nh Technology Co., Ltd. is a high-tech company who specializes in researching and developping, designing and manufacturing testing and measuring instruments and equipment. We have owned a 19 years accumulation of technology and experience in color and gloss management field, since founded in 1998.

Our Certificates: ISO9001:2015-2017; CE; FCC; ROHS; TUV; SCM;

Shenzhen 3nh Technology Co., Ltd.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, 3nh launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
company detail_MG_3639



Parameter:



Model VC(3)
Type Reflective
Illumination 750 to 3200 lux
Light Source D65, A, TL84, CWF



Camera Color Check Box provides a special lighting source for the test of your Video Camera. Its main functions are as below:



Camera Color Check Box Specifications:

1. Including D65, A, TL84, CWF light sources

2. Quick Switch among each group of light sources by using microcomputer control

3. Timing function to record the using time of each group of light sources separately.

4. All parts are professional import, international quality certification.

Camera Color Check Box Performance:

1. Daylight accredited by CIE, 6500k color temperature

2. Illumination range: 750 to 3200 lux

3. Background of the light sources is Neutral Grey.

4. Illumination adjustable from 1% to 100%, higher than 80% evenness, test distance can be adjustable.



Light Source:

Light Source Color viewing booths application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
A Shooting Light of American Window, Colorimetric reference light source 2856 75
CWF (Cool White Fluorescent)American Standard 4150 18





Frequently Asked Questions

1. Which models are the equivalent models to T90-7?
Answer: X-rite Spectral Light QC is the equivalent product to 3nh T90-7.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.


Small TILO Camera Viewer Color Check Box Chart Testing Environment Assessment Cabinet 2Small TILO Camera Viewer Color Check Box Chart Testing Environment Assessment Cabinet 3Small TILO Camera Viewer Color Check Box Chart Testing Environment Assessment Cabinet 4
