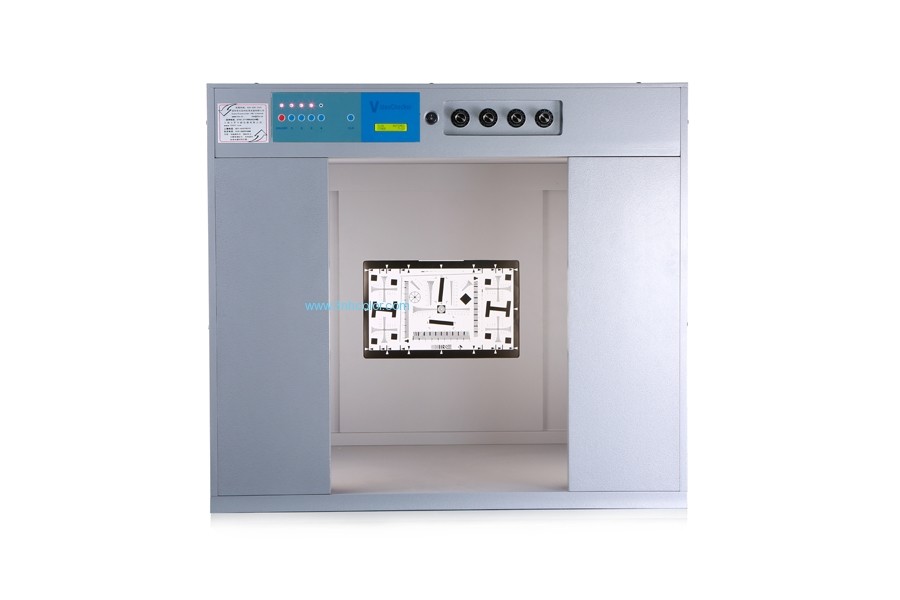

Transmissive Camera Lens Resolution Test Chart Standard Light Box MDF Material
Product Details
| Material: | MDF | Illuminants: | Four Light Sources D65, A, TL84, CWF |
|---|---|---|---|
| Illumination Range: | 750 To 3200 Lux | Name: | Camera Test Light Source Box |
| Product Name: | Lcd Monitor,Vision Eye Test Chart | Application: | Optometry Equipment,eye Testing |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description

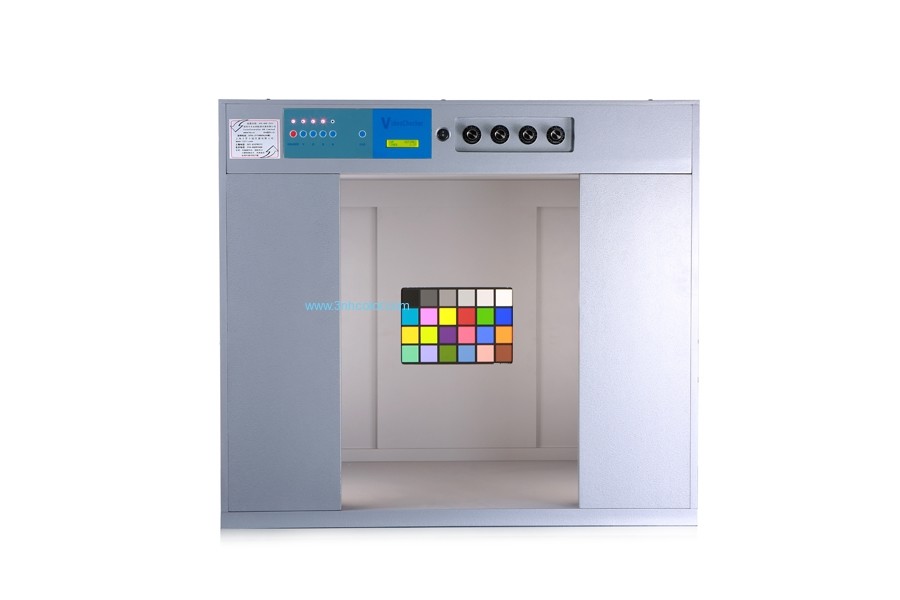

Silk Standard Horizontal MDF Material Camera Viewing Color Check Light D65 TL84 A Source Box
Our Certificates: ISO9001:2015-2017; CE; FCC; ROHS; TUV; SCM;
Silk.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, Silk launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
Parameter:
| Model | VC(3) |
| Type | Reflective |
| Illumination | 750 to 3200 lux |
| Light Source | D65, A, TL84, CWF |
Brief Introduction:
In the production of high-end mobile phones or cameras, their cameras should be color-measured to
determine their resolution. VC(3) provides a special illumination source for camera test, to meet the
requirements of high illumination uniformity, color temperature of the light source can be switched
and illumination can be continuously adjusted.
Usages:
brand : Silk
Model : VC(3)
use : VideoChecker provides a special lighting source for the camera test, which meets the requirements
of high illumination uniformity, adjustable colortemperature and continuous illumination.
1. D65 is provided in the light box, and F and TL84 are also provided as backup light sources.
2. Use microcomputer to control fast switching between each group of light sources.
3. Timeout timer function, separately record the usage time of each group of light sources.
4. All parts are imported from abroad and conform to international quality certification.
Features:
1. The seven-color artificial daylight recognized by the International Lighting Society CIE,
its color temperature is 6500k
2. The illumination range of the light source is from 750 to 3200 Luxes.
3. Appearance size: 98 (width) x60 (depth) x85 (height) cm
4. The background color of the light source is Neutral Grey. When using the light box,
try to avoid external light hitting the position where the color board is installed on the
top of the box.
5. Four groups of lights can be combined to turn on or turn off (one of which is a standby
light source),when it is necessary to use the light source, the first group and the second
group of lamps must be removed first, and the lamp can be installed.
6. The illumination can be adjusted from 1% to 100%, and the uniformity is higher than 80%. The
test distance can be adjusted according to the actual situation.
About the Light Sources:
D65 International standard Artificial Daylight
Color temperature : 6500K Power : 18W
TL84 Applied to stores in Europe, Japan and China
Color temperature : 4000K Power : 18W
A American shopwindow spotlight
Color temperature : 2700K Power : 40W
Frequently Asked Questions
1. Which models are the equivalent models to T90-7?
Answer: X-rite Spectral Light QC is the equivalent product to Silk T90-7.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Contact Information:
Contact Person: Clara Liu;
Email: L001@Silk.com;
Wechat & Whatsapp ID: +8613510310267;
Skype: clara.Silk
