Camera Resolution Test Chart Transparent 4k Uhd Tv Universal Equiped With Light Box

Place of Origin Shenzhen, China
Brand Name SineImage
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number COLOR CAMERA GRAY SCALE TEST CHART
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time within 3-5 working days after payment confirmed
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SineImage Usage Transmission Characteristics Of 4K Camera
OEM Yes Light Source Can Be Equiped With Light Box
D 0.75 Transmission 18%
High Light

camera resolution chart

,

camera lens test chart

Leave a Message
Product Description

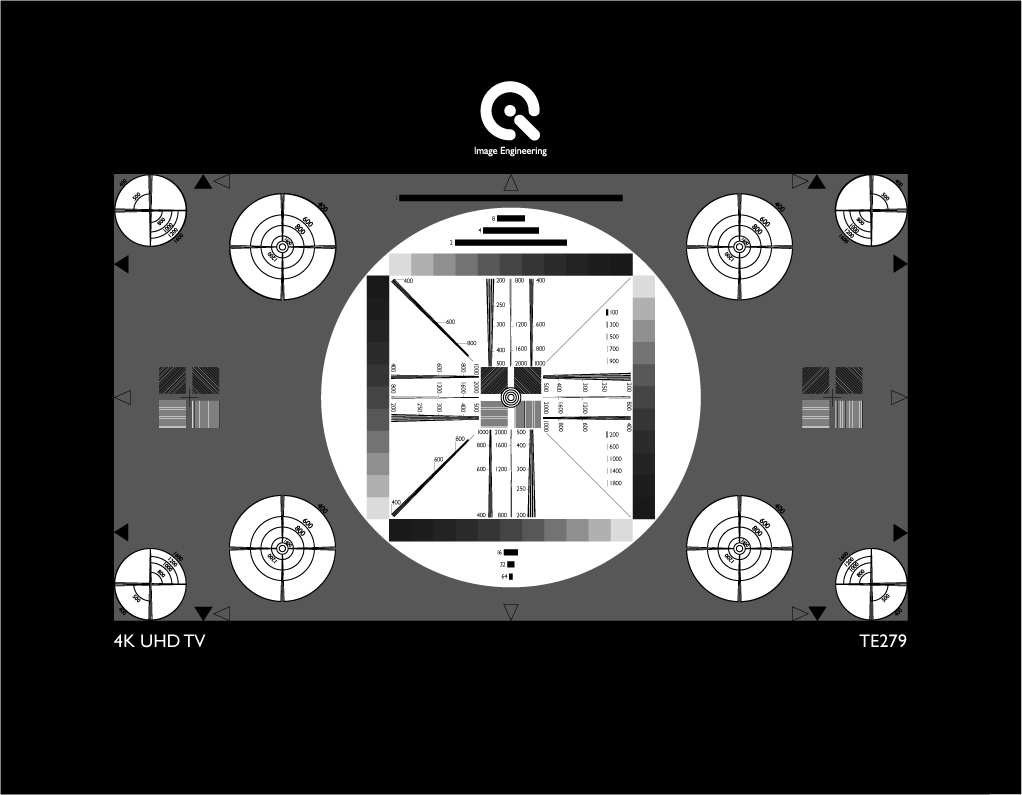

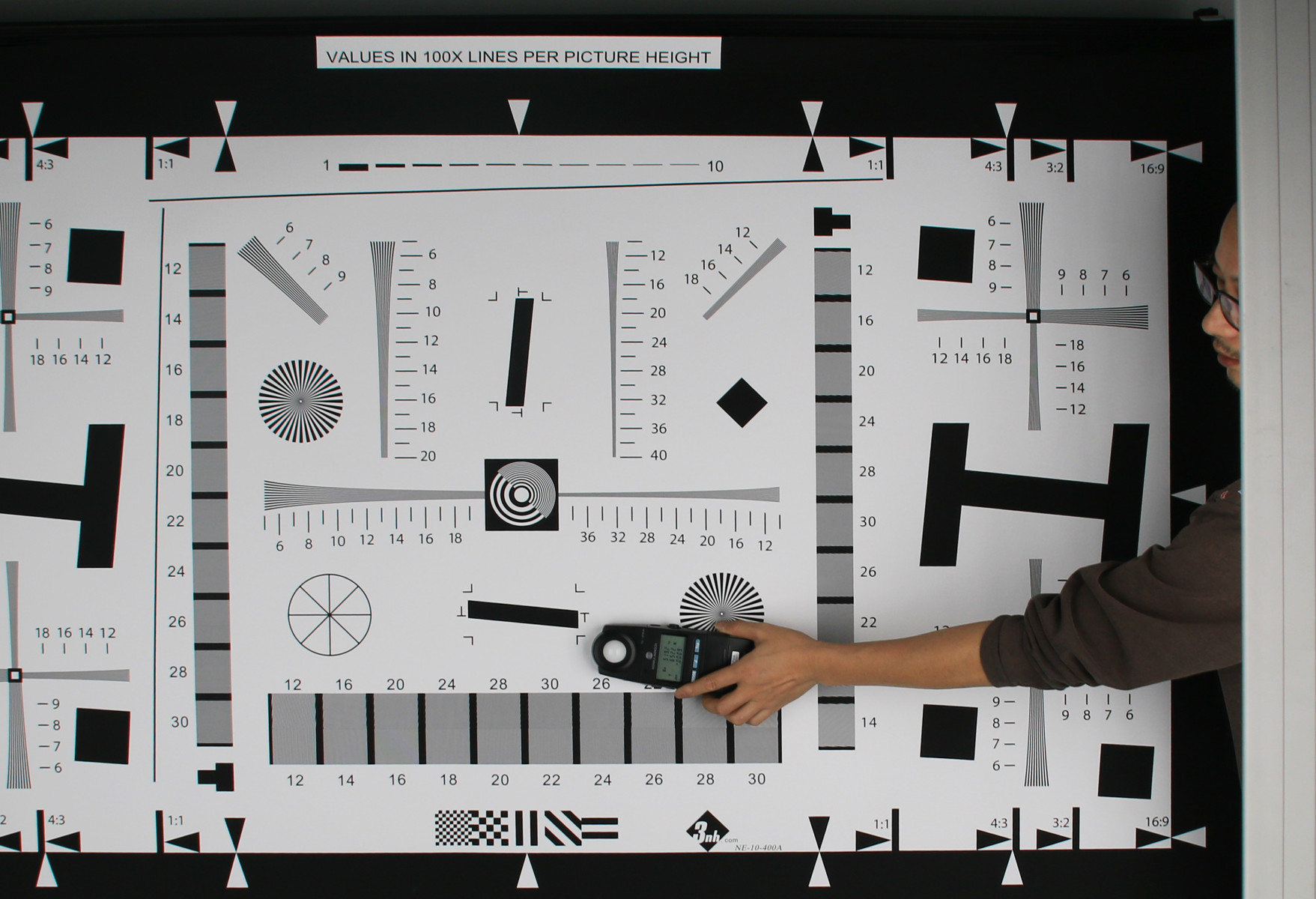

Professional Camera Testing TRANSPARENT 4K (UHD TV) UNIVERSAL TEST CHART 16:9



The TE279 is designed for quick (mainly visual) appraisal of transmission characteristics of 4K (UHD TV) cameras.



In the center of the test chart on a gray background (D=0.75; transmission = 18%) a white circle with gray scales and resolution wedges is located. On both sides of this central circle four circles with resolution wedges are arranged.



The 16:9 format is marked by four arrows located on the horizontal and vertical central lines. In addition, four arrows located close to the circles on the upper and the bottom edge of the picture mark the 4:3 format.



The white central circles shows four gray scales each of 11 steps. They increase in equal linear steps from D=0.15 to D=1.65 and are used for checking halftone rendition of cameras. Due to the white surrounding area the results may, however, be qualified.



All frequency values in the test chart are indicated in cph (cycles per picture height). In the central circle three resolution wedges with different frequencies are arranged vertically and horizontally. They reach from 200 to 500, from 400 to 1000 and from 800 to 2000 cph. In addition, two resolution wedges angled in 45° generate frequencies of 400 to 1000 cph.



In the middle of the test chart and on the left and right sides there are four squares with line rasters that are inclined at angles of 0, 45, 90 and 135°. They gene rate a frequency of 400 cph. Those line rasters which are inclined at angles of 45° and 135° generate a diffe rent frequency in horizontal and vertical direction (due to their inclination).

The eight outer circles are arranged in such a way that they can be used both for 16:9 and 4:3 format. The larger ones show cross-shaped resolution wedges. The circular rings, which can also be used for checking geometry, are designed for marking the resolution in vertical and horizontal direction. Resolution is shown at 400, 600, 800, 1200 and 1600 cph. The four circles in the corners have longer resolution wedges. They cross at 640 cph and have markings from 400 to 1600 cph.



In the center of the test chart both in the gray and white area bar elements are arranged with a length of 1 (=half the picture-height), 2, 4, 8, 16, 32 and 64 cph. Left to right vertical gray scale there are five additional short bars with 100 to 900 and 200 to 1800 cph.

Brief Introduction:



1. We, 3nh-Sine Image, now is the biggest and best manufacturer of Camera Test Charts in China.

2. We can make all kinds of test charts, such as ISO12233 Resolution Charts, Distortion Charts, Greyscale Charts, 18% Netral Grey Cards, SFR Charts, Dynamic Range Charts, and so on.

3. Both transmissive and reflective are OK.

4. Any customised charts are no problem, either.

5. Our test charts definitely can match with the charts of ESSER(IE) and Imatest, no matter in accuracy or in quality.
6. Compared with ESSER(IE) and Imatest, our advantages exist on not only the much better prices but also much better delivery time.

7. More and more world famous companies have already trusted us as their long-term supplier for camera test charts.
8. These companies include HUAWEI, Apple, OPPO, vivo, O-film, DJI, GoPro, Lenovo, Samsung, LG, Suny Optics, ZTE.

9. We can make some small samples for you to check and confirm first.



Frequently Asked Questions:



1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments, gloss meters and camera test charts. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 3-7 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
