CE Resolution Test Chart Sineimage YE0121 Sector Star Target Transparent / Reflectance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Brand | SineImage | Usage | For Resolution And Sharpness Measurements |
---|---|---|---|
Light Source | Can Be Equiped With Light Box | Standard | ISO12233(2014) |
Model | YE0121 | Diameter Center Mark | 5 Mm |
High Light | camera resolution chart,camera lens test chart |
Product Description

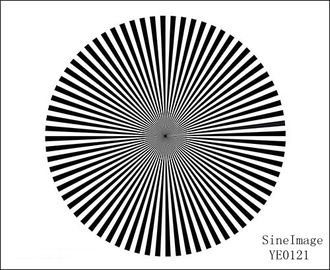

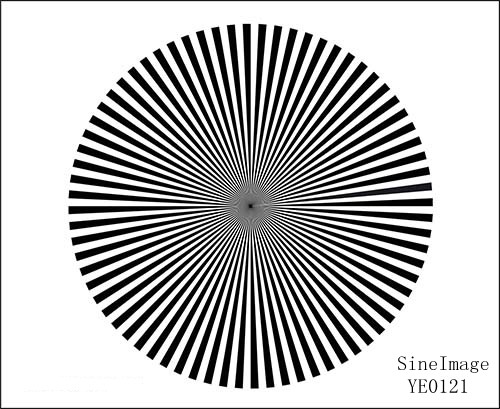

Sineimage YE0121 Sector Star Test Chart (72 cycles)
- Optical focus: Adjust focus of zoom lens at greatest focal length.
- Back focal distance (lens): Adjust focus at shortest focal length by regulating lens mechanically with adjustment screw and optimize alternatively with a).
- Back focal distance (pick-up tubes): If focus varies from channel to channel between greatest and shortest focal length, the individual pick-up tubes must be adjusted mechanically in the optical axis.
- Select white channel. Set optical focus at greatest focal length. With shortest focal length and divergent focus adjust the pick-up tube in W-channel until optimum focus is achieved. If necessary optimize by alternating with optical focus adjustment.
- With unchanged optical focus adjustment and shortest focal length adjust the red and blue pick- up tube until optimum focus is achieved. Image focus (focus adjustment) is maintained at all focal lengths (zoom-in) and constant distance from object by means of back focal distance adjustment.
Standard Transparent/Reflectance Test Chart Size
-
Size Picture size(4:3) Picture size(16:9) Chart Size(16:9) A280 280*210mm 280*157.5mm 365*305mm D240 240*180mm 240*135mm 320*290mm D280 280*210mm 80*157.5mm 360*280mm - ISO 12233 Resolution Test Chart Size
-
Model Specification Size Material NQ-10-50A 0.5X 10x17.8 cm photographic paper NQ-10-100A 1X 20x35.6 cm photographic paper NQ-10-200A 2X 40x71.1 cm photographic paper NQ-10-400A 4X 80x142.2 cm photographic paper NQ-10-800A 8X 160x284.4 cm photographic paper
