IEC 61146 Lens Resolution Test Sineimage YE04 Checking TV Cameras Transmission

Place of Origin Shenzhen, China
Brand Name SineImage
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YE04
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time within 3-5 working days after payment confirmed
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SineImage Usage For Resolution And Sharpness Measurements
Light Source Can Be Equiped With Light Box Standard ISO12233(2014)
Model YE04 Diameter Center Mark 5 Mm
High Light

camera resolution chart

,

camera lens test chart

Leave a Message
Product Description

Sineimage YE04 Bar Test Chart (IEC 61146)





The bar test chart is designed for checking the transmission characteristics of TV cameras at intermediate and deep frequencies.

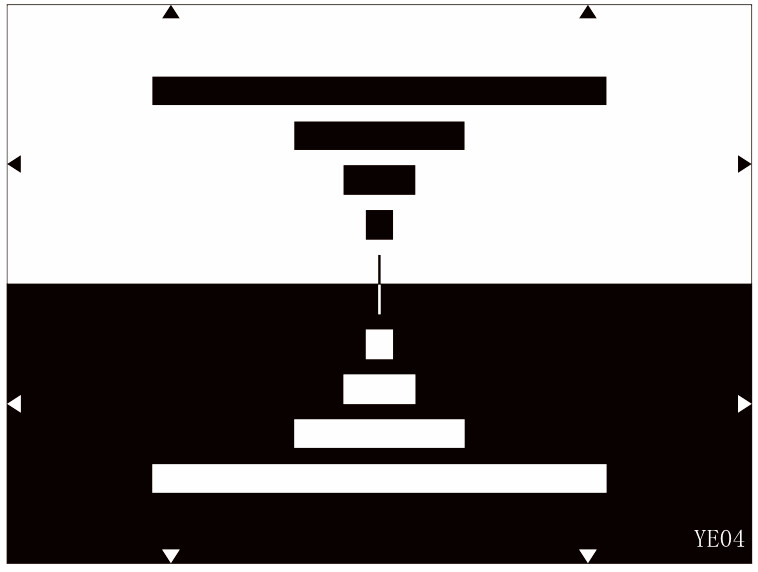

In the upper part of the picture 4 black horizontal bars of different length are arranged in a white surrounding. The lower part is a mirror image to the upper one; however white bars are arranged in a black surrounding. A narrow vertical strip of black and white each are located in the center of the picture. These strips resp. bars generate puls signals of approx. 2 µs, 5 µs, 12 µs and 32 µs.
UTILIZATION
Inadequate transmission characteristics at intermediate and deep frequencies generate streaking effects in scanning line direction. Streaking may also be caused by defective clamping circuits. Long streaking (high error-time-constancy) are clearly visible at the monitor. Short streaking (low error-time-constancy) can be better observed in the oscillogram. For this purpose an oscilloscope with a line selector has to be used and the different bars may be observed one after the other. Also the adjustment of streaking (e.g. compensation of afterglow of flying spot scanners) should be effected with the aid of picture monitor and oscilloscope.
The narrow vertical strips in the center of the picture show echo disturbances, as may occur e.g. with defective delay lines in circuits for aperture corrections. The large black and white areas in both parts of the picture are designed to asses shadings, background structure and other errors. For this purpose the test chart may also be used upside down.

  1.

Standard Transparent/Reflectance Test Chart Size

  1. Size Picture size(4:3) Picture size(16:9) Chart Size(16:9)
    A280 280*210mm 280*157.5mm 365*305mm
    D240 240*180mm 240*135mm 320*290mm
    D280 280*210mm 80*157.5mm 360*280mm
  2. ISO 12233 Resolution Test Chart Size
  3.
  4. Model Specification Size Material
    NQ-10-50A 0.5X 10x17.8 cm photographic paper
    NQ-10-100A 1X 20x35.6 cm photographic paper
    NQ-10-200A 2X 40x71.1 cm photographic paper
    NQ-10-400A 4X 80x142.2 cm photographic paper
    NQ-10-800A 8X 160x284.4 cm photographic paper



Remark: We support Any customized test charts only if you have high resolution image and size.
