Reflectance Resolution Grid Test Chart Target Sineimage YE0187 For TV Cameras

  • Reflectance Resolution Grid Test Chart Target Sineimage YE0187 For TV Cameras
  • Reflectance Resolution Grid Test Chart Target Sineimage YE0187 For TV Cameras
Place of Origin Shenzhen, China
Brand Name SineImage
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YE0187
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time within 3-5 working days after payment confirmed
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SineImage Usage For Resolution And Sharpness Measurements
Light Source Can Be Equiped With Light Box Standard ISO12233(2014)
Model YE0187 Diameter Center Mark 5 Mm
High Light

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

Sineimage YE0187 Grid Test Chart for TV cameras



Model YE0187
Type Reflectance/Transparent
Format Custom Designs
Ratio 4:3
Material Film or HD photographic paper

The Sineimage YE0187 grid test chart is designed for operational adjustment and control of TV cameras.

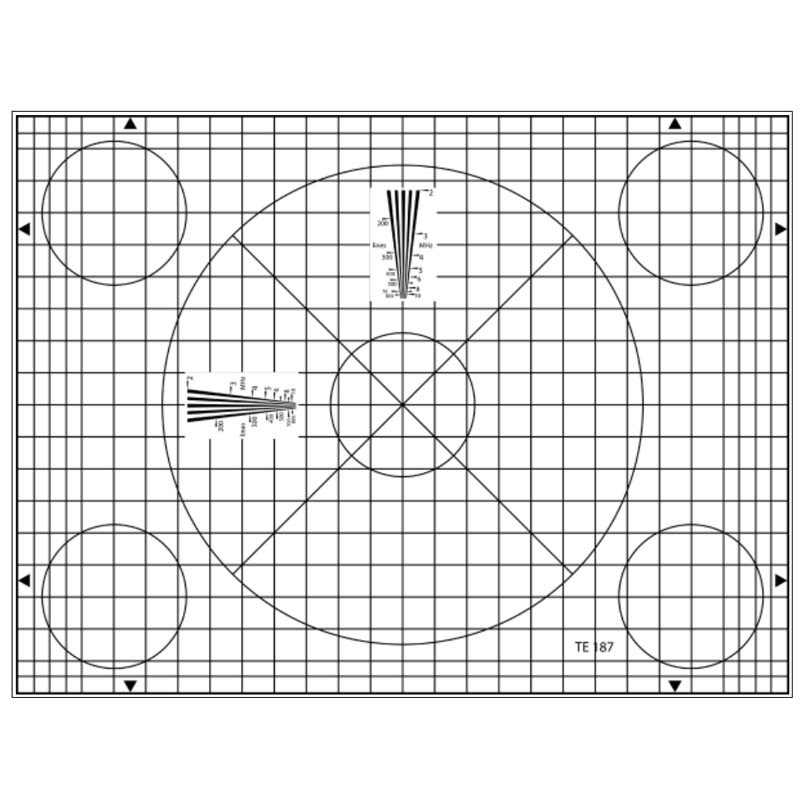

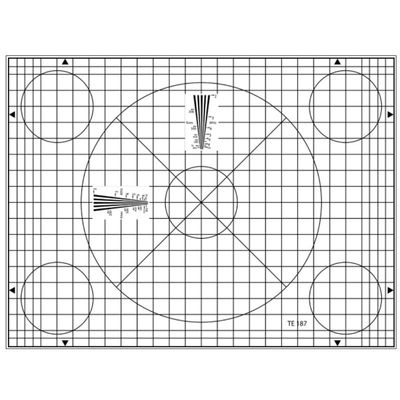

It consists of circles permitting rough visual appraisal of scan linearity, a grid structure serving the purpose of adjusting registration and resolution wedges serving the purpose of resolution appraisal.

A grid structure consisting of 17 horizontal and 23 vertical lines is arranged on a white background forming 18x24 squares. 2 vertical grid lines each divide the outer 2 vertical square rows in the middle. One horizontal grid line each divide the outer horizontal square rows in the middle.

The width of the grid lines is 0.13% of the picture width. The large circular line has a diameter of 83 1/3% of the picture height, the 5 small circular lines have a diameter of 25% of the picture height. 2 resolution wedges are arranged in the large circle at angles of 0° and 90°, corresponding to signal frequencies of 2- 10MHz. (The marking ends at 8 MHz and 800 lines.)
Sineimage YE0187 Grid Test Chart for TV cameras

Utilization
The test chart is designed for operational adjustment and control of TV cameras. The circles permit rough visual appraisal of scan linearity. The lines serve the purpose of adjusting registration. The wedges serve the purpose of resolution appraisal.


Remark: We support Any customized test charts only if you have high resolution image and size.

  1.

Standard Transparent/Reflectance Test Chart Size

  1. Size Picture size(4:3) Picture size(16:9) Chart Size(16:9)
    A280 280*210mm 280*157.5mm 365*305mm
    D240 240*180mm 240*135mm 320*290mm
    D280 280*210mm 80*157.5mm 360*280mm
  2. ISO 12233 Resolution Test Chart Size
  3.
  4. Model Specification Size Material
    NQ-10-50A 0.5X 10x17.8 cm photographic paper
    NQ-10-100A 1X 20x35.6 cm photographic paper
    NQ-10-200A 2X 40x71.1 cm photographic paper
    NQ-10-400A 4X 80x142.2 cm photographic paper
    NQ-10-800A 8X 160x284.4 cm photographic paper



Remark: We support Any customized test charts only if you have high resolution image and size.
